Craniomaxillofacial

The CranioMaxilloFacial(CMF) system consist of a wide range fixation and reconstruction implants of skull. We delivery the best in class products of plates, screws and instruments.

- Upper Face Plate System 1.2mm
- Mid Face Plate System 1.5mm
- Mini Plate System 2.0mm
- Mandible Plate System 2.0/2.3mm

Upper Face Plate 1.2mm

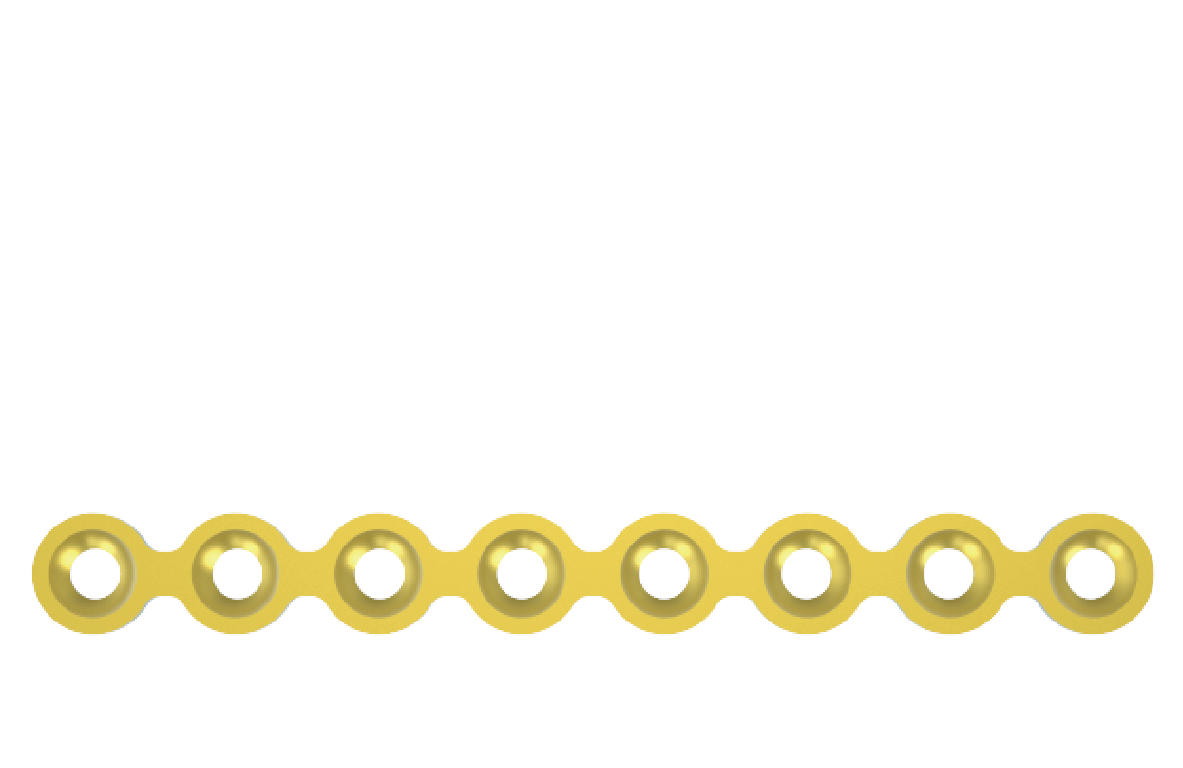

CMF 1.2 Straight Plate

Straight Plate, 1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
4 T1-55-06204
6 T1-55-06206
8 T1-55-06208
12 T1-55-06212
16 T1-55-06216
24 T1-55-06224

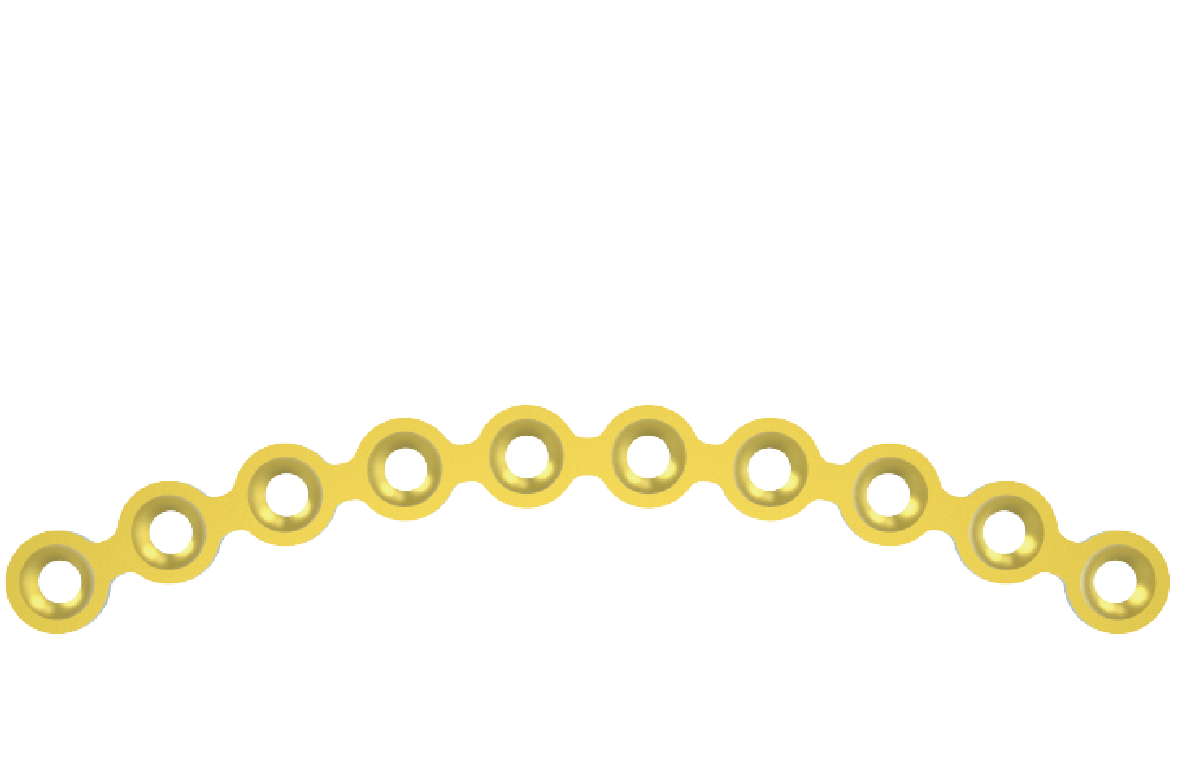

CMF 1.2 Curved Plate

Curved Plate, 1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
4 T1-55-06254
8 T1-55-06258
10 T1-55-06250

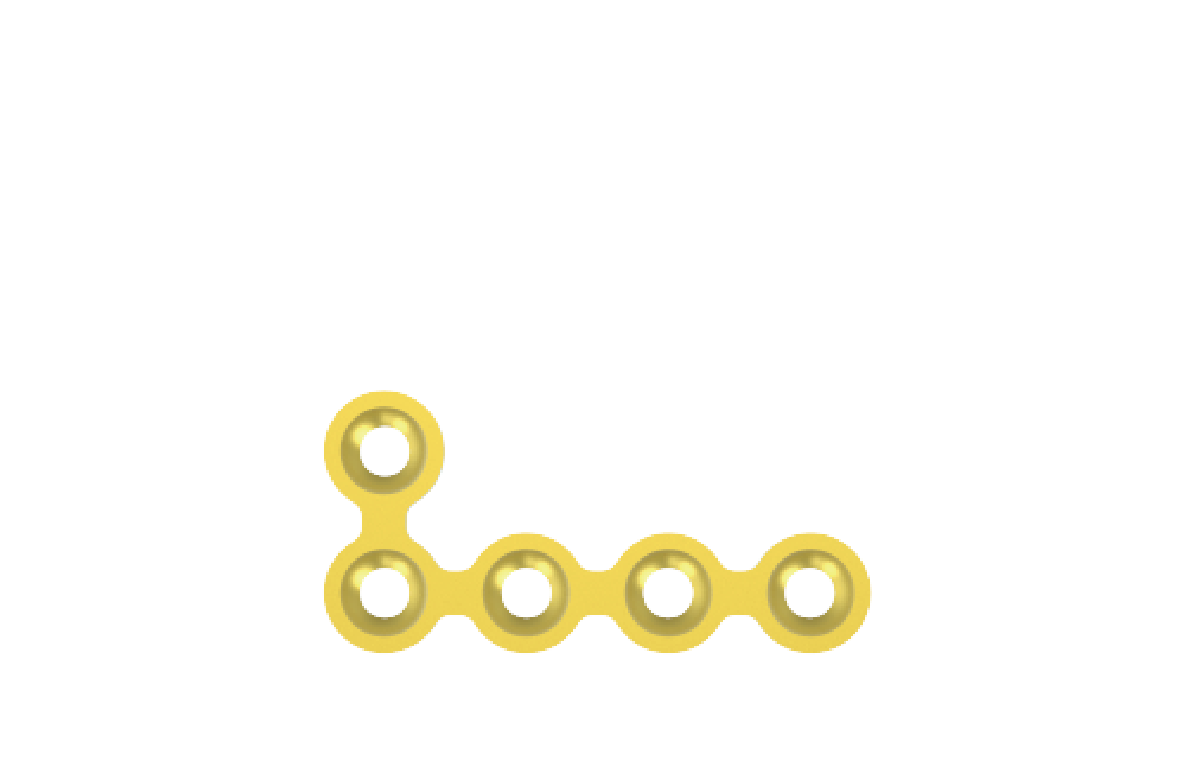

CMF 1.2 L Plate

L Plate, 1.2mm
Profile Height: 0.6mm

Holes R/L Titanium (P/N)
5 R T1-55-06263
5 L T1-55-06262
8 R T1-55-06261
8 L T1-55-06260

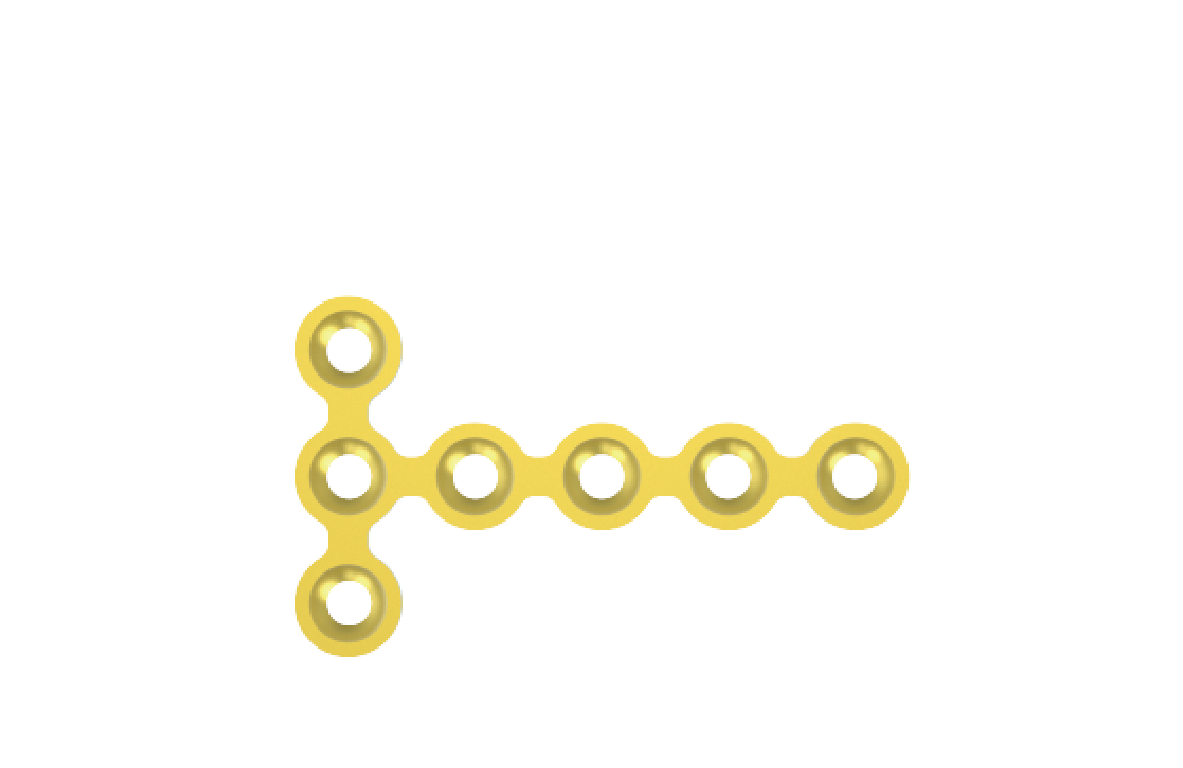

CMF 1.2 T Platea

T Plate, 1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
7 T1-55-06270

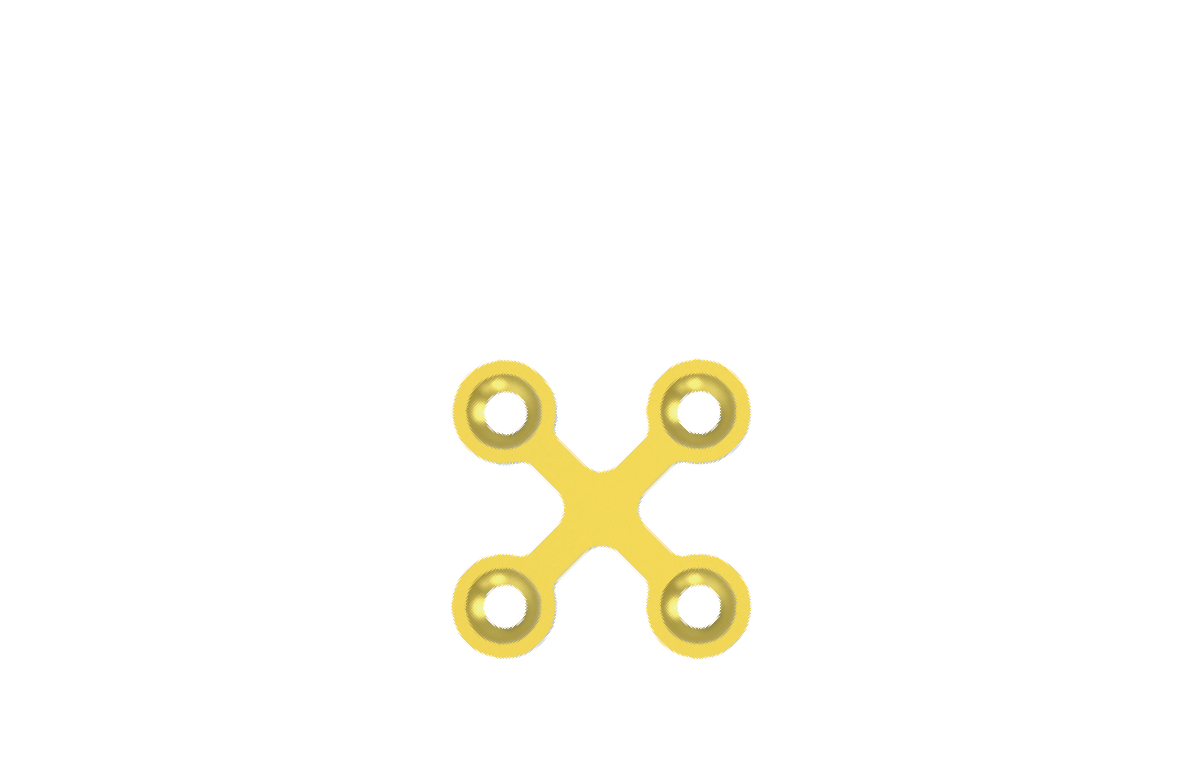

CMF 1.2 X Plate

X Plate, 1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
4 T1-55-06720

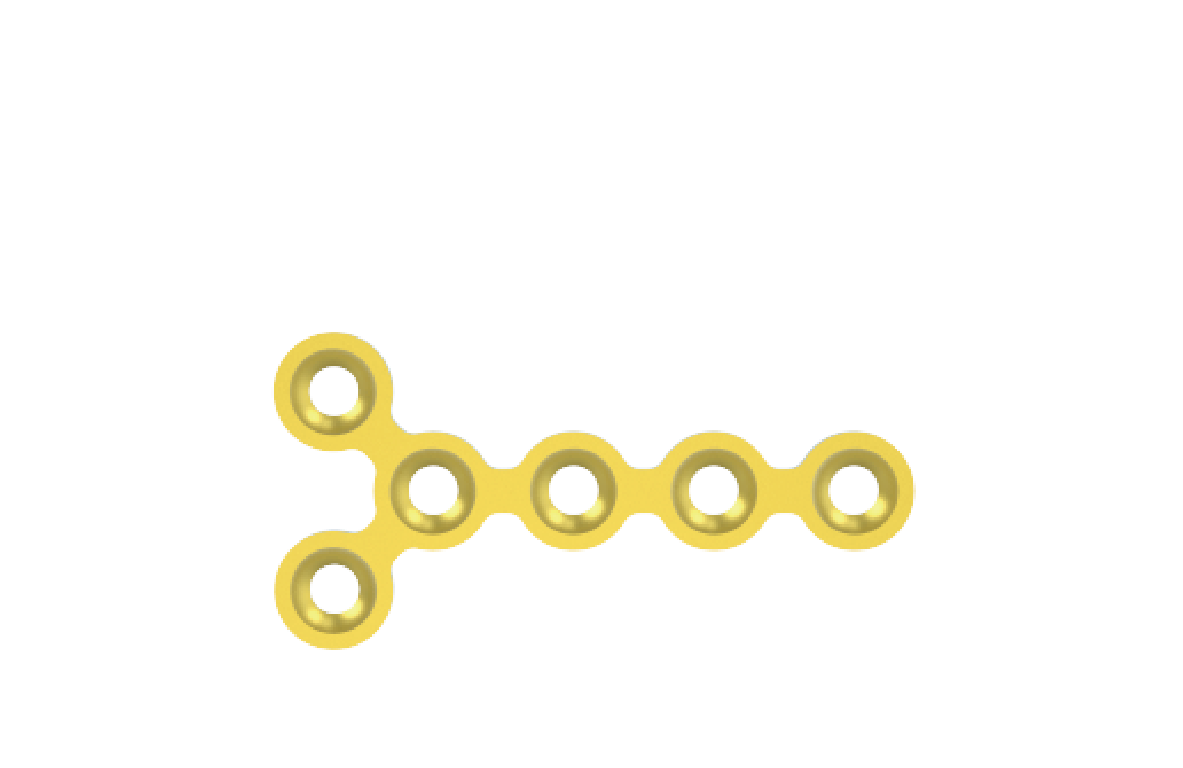

CMF 1.2 Y Plate

Y Plate,1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
6 T1-55-06560

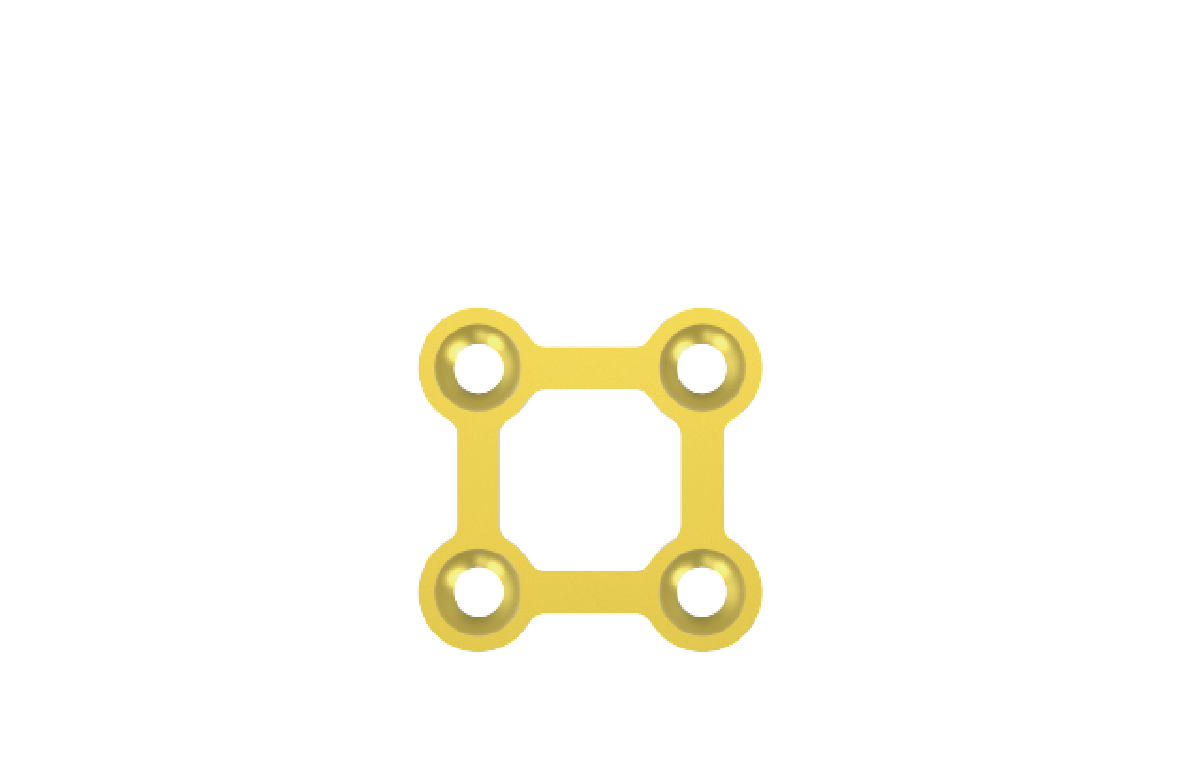

CMF 1.2 3D Plate

3D Plate, 1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
2x2 T1-55-06231
3x2 T1-55-06232
4x2 T1-55-06233
4x4 T1-55-06235
6x2 T1-55-06234
6x4 T1-55-06237
6x6 T1-55-06236
10x10 T1-55-06238

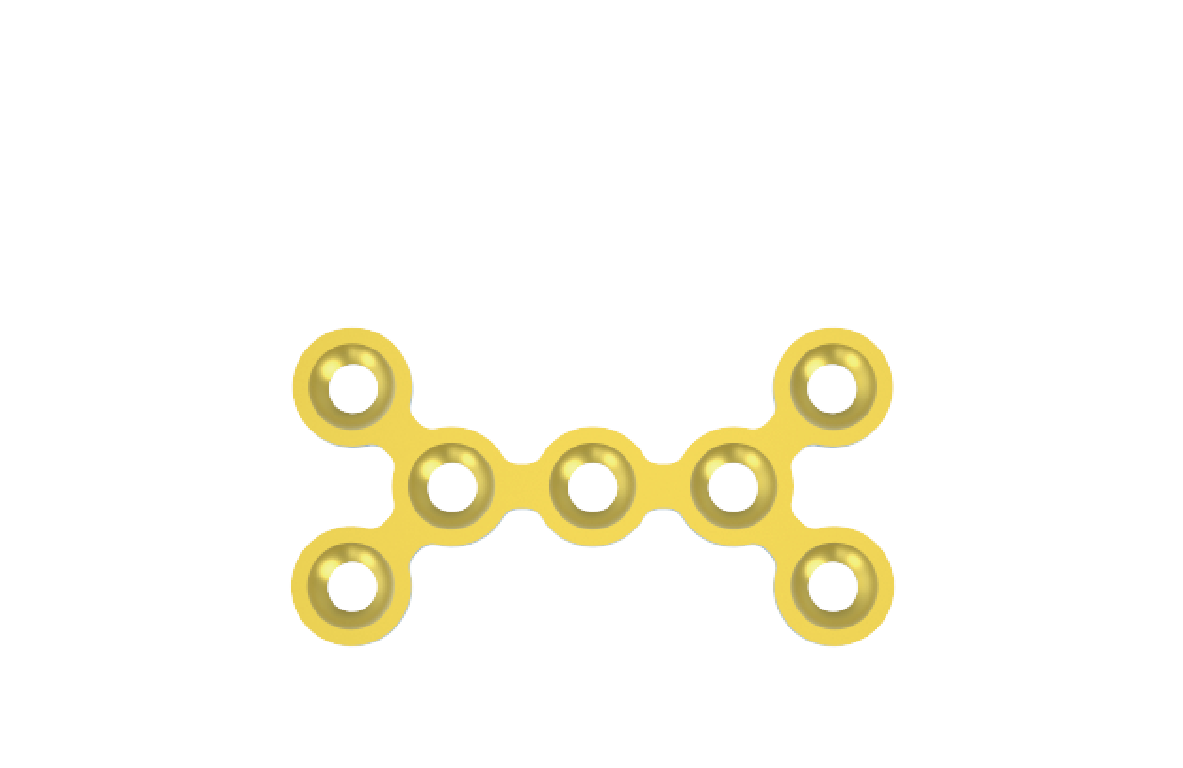

CMF 1.2 Y-Y Plate

Y-Y Plate, 1.2mm
Profile Height: 0.6mm

Holes Titanium (P/N)
6 T1-54-06262
7 T1-55-06240

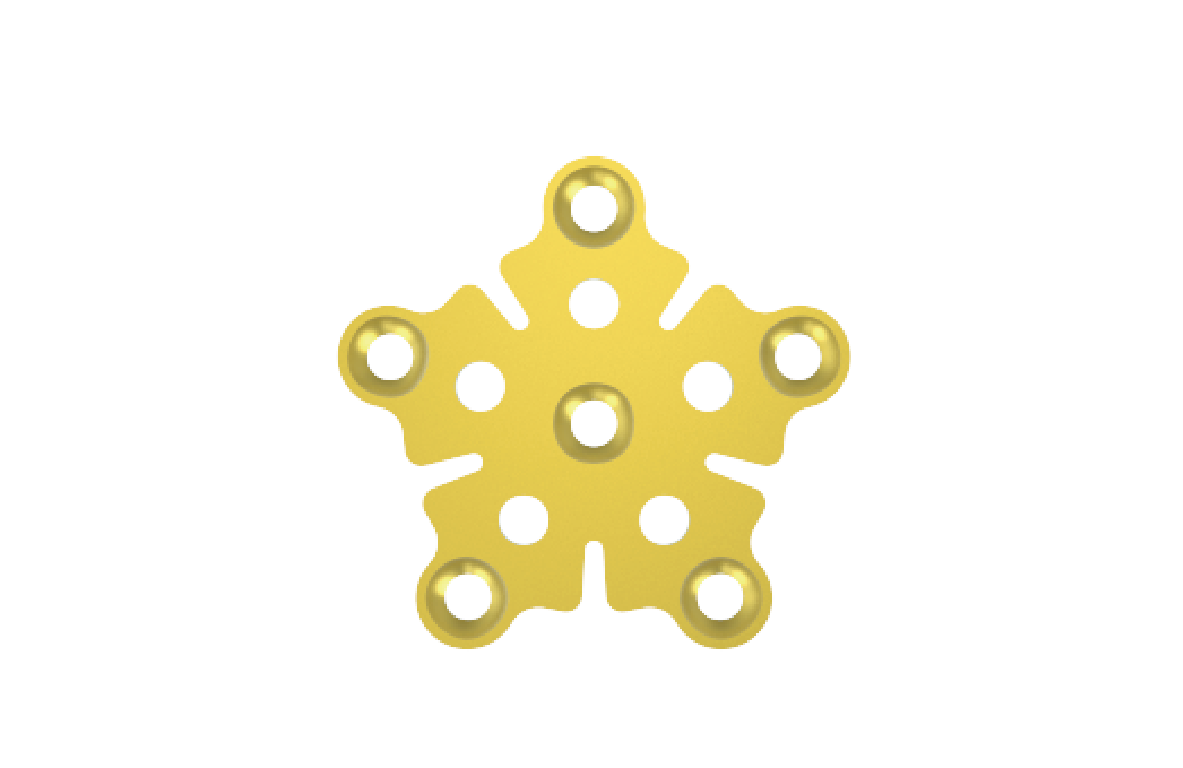

CMF 1.2 Burr Hole Cover Plate

Burr Hole Cover Plate, 1.2mm
Profile Height: 0.6mm

Width(mm) Titanium (P/N)
7 T1-55-06375
10 T1-55-06372
14 T1-55-06370
20 T1-55-06368
24 T1-55-06366

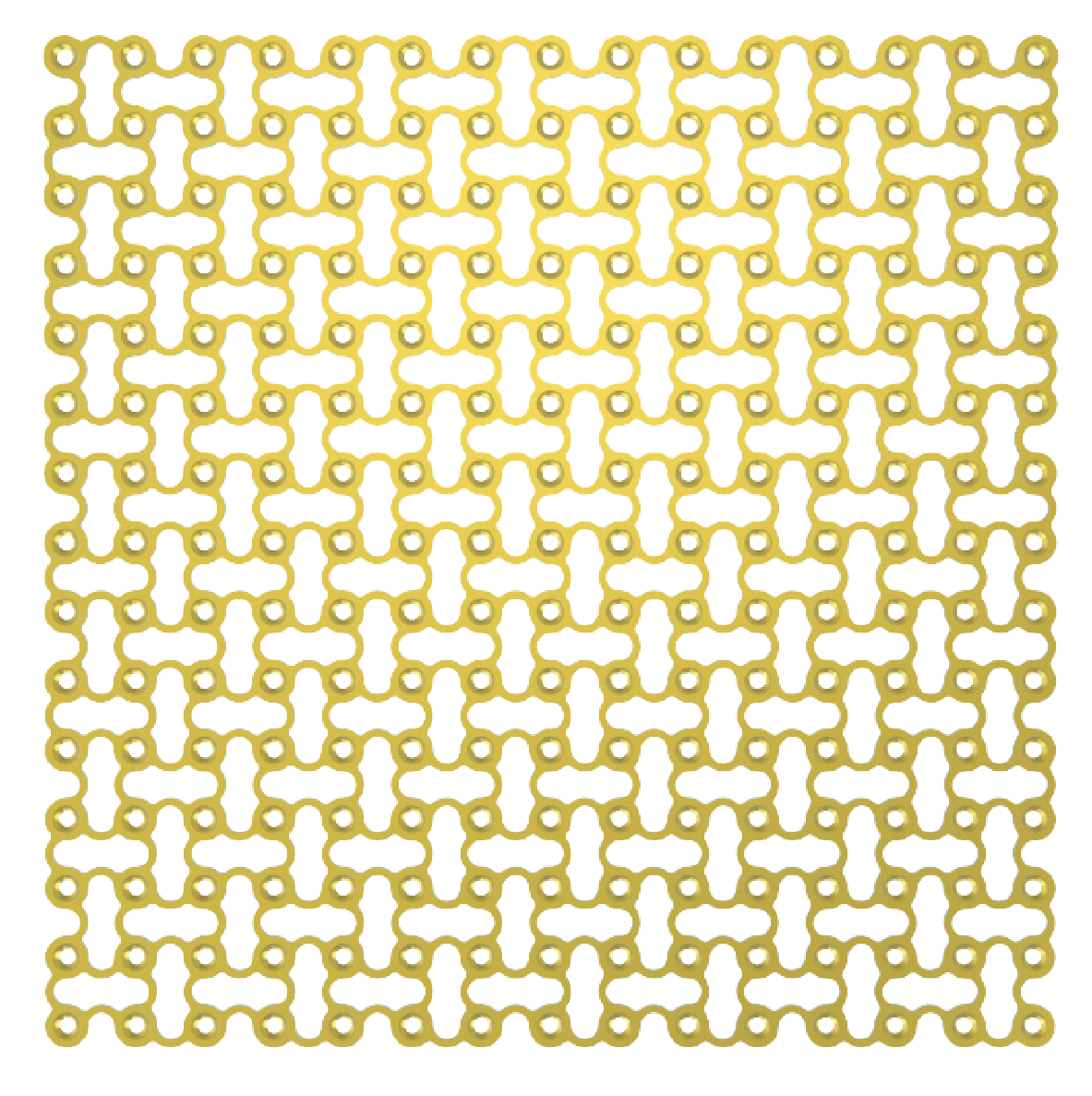

CMF 1.2 Mesh Plate

Mesh Plate, 1.2mm
Profile Height: 0.6mm

Width(mm) Titanium (P/N)
90x90 T1-54-00642
120x120 T1-54-00643
200x200 T1-54-00641

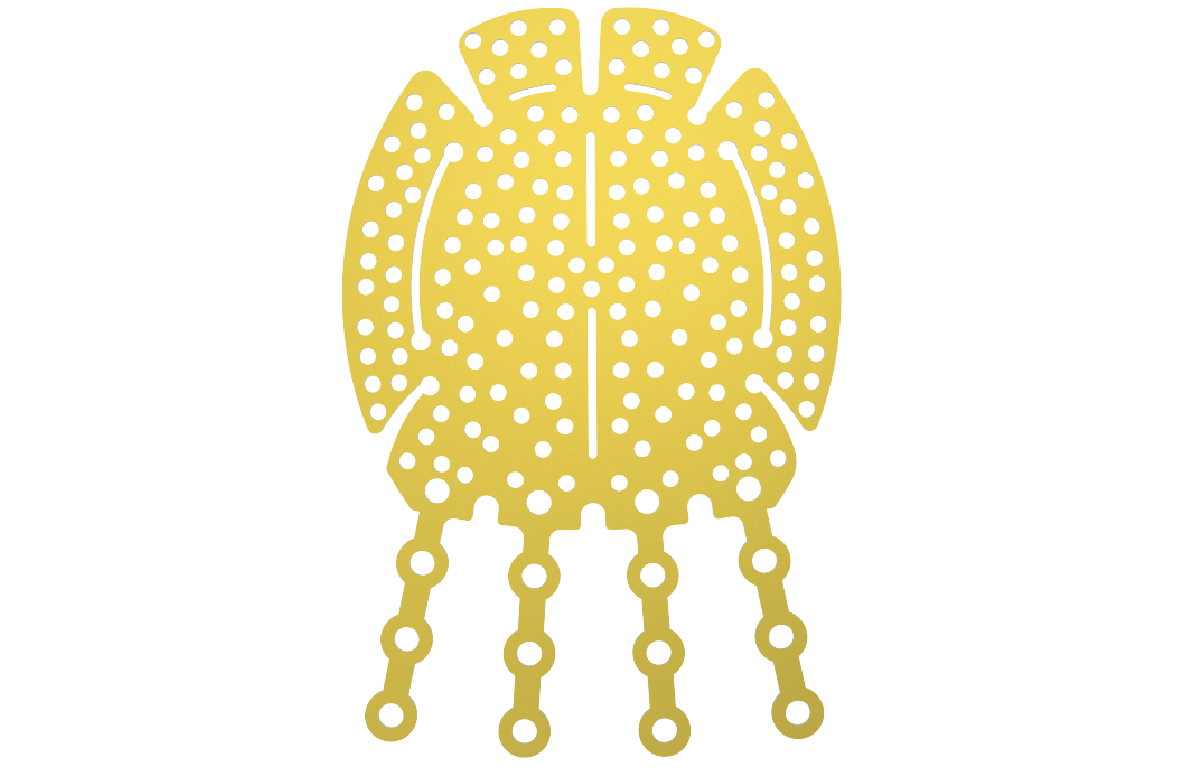

CMF 1.2 Orbital Floor Plate

Orbital Floor Plate, 1.2mm
Profile Height: 0.4mm

Titanium (P/N)
T1-54-04002
Mid Face Plate 1.5mm

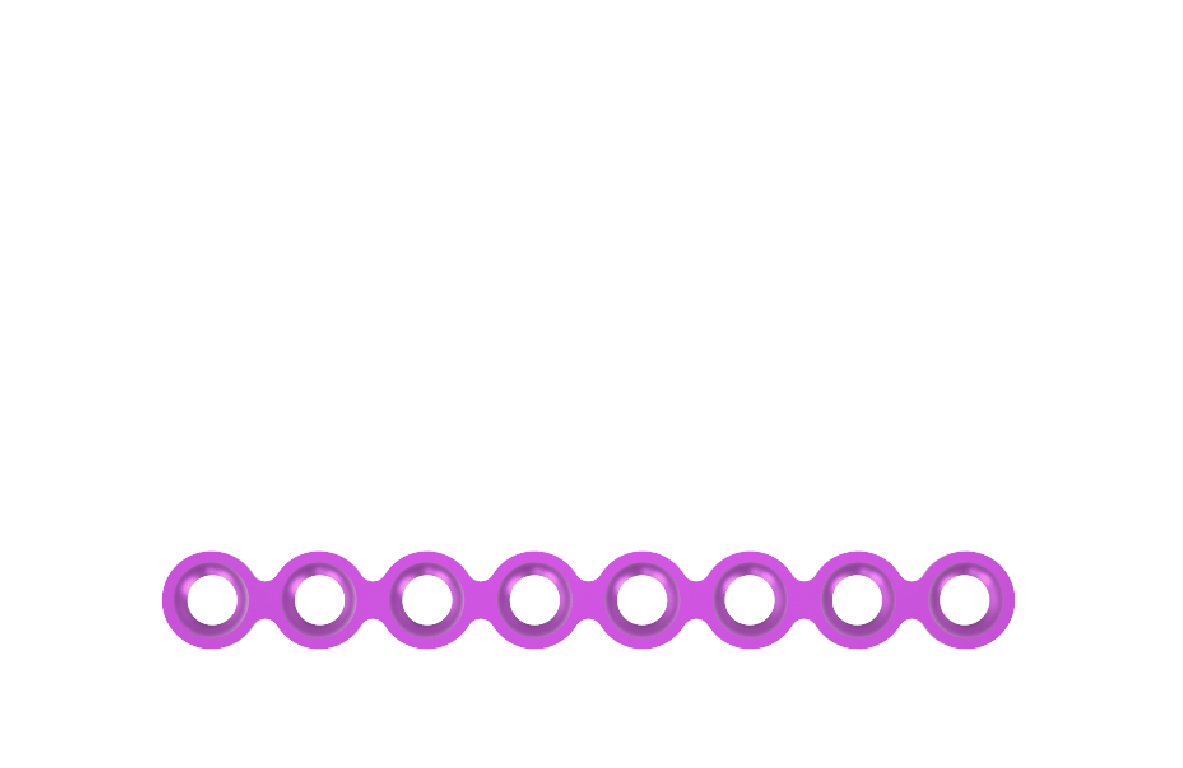

CMF 1.5 Straight Plate

Straight Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
8 T1-55-06708
24 T1-55-06724

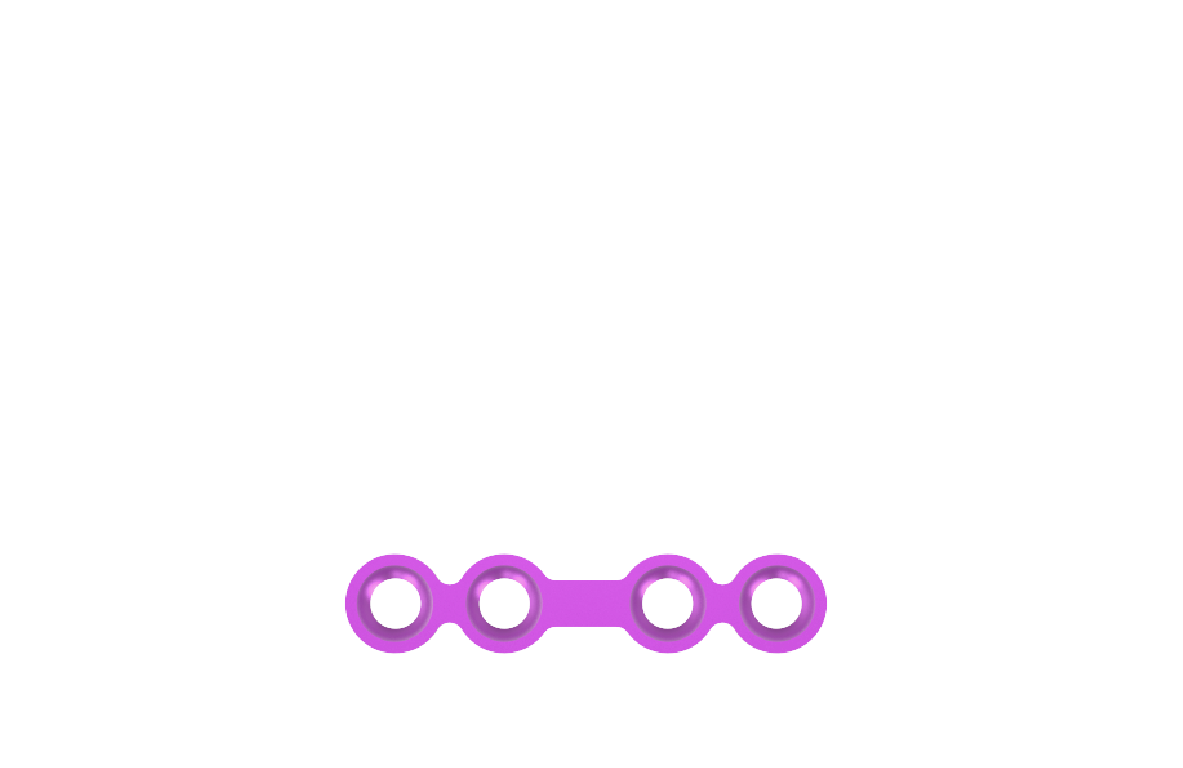

CMF 1.5 Straight with Bar Plate

Striaght w/Bar Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
4 T1-55-06704

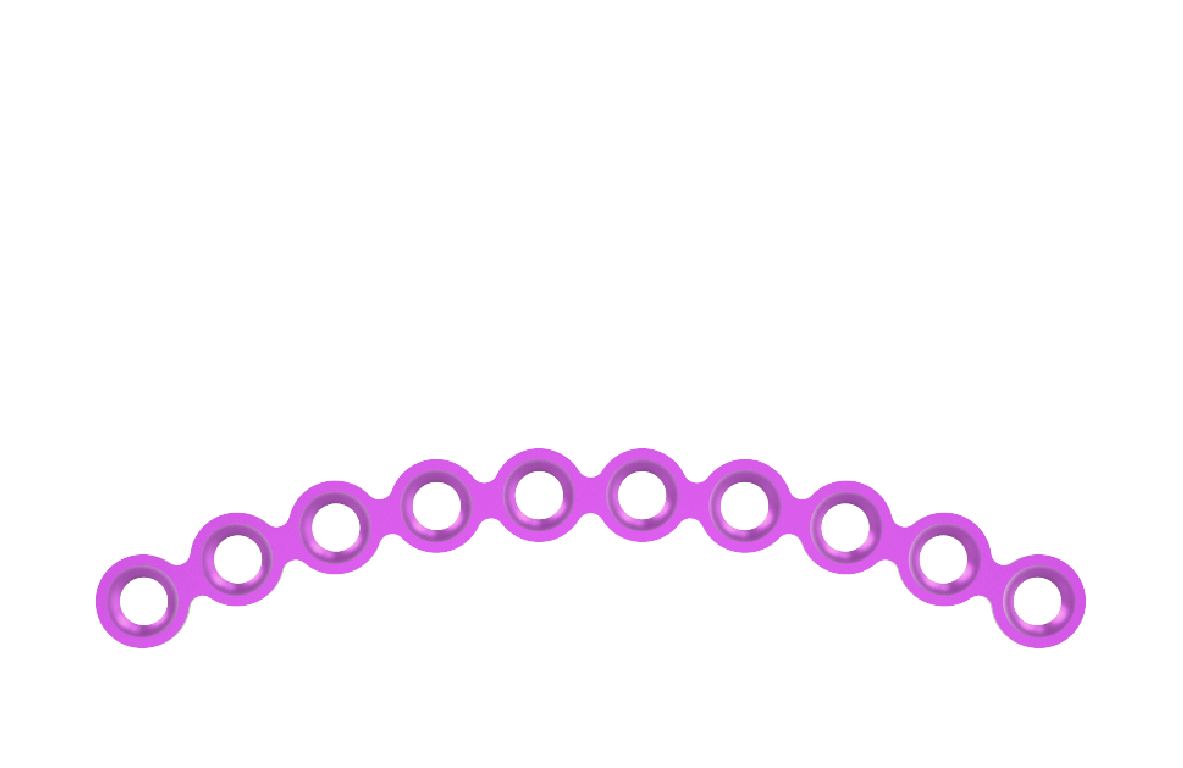

CMF 1.5 Curved Plate

Curved Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
10 T1-55-06750

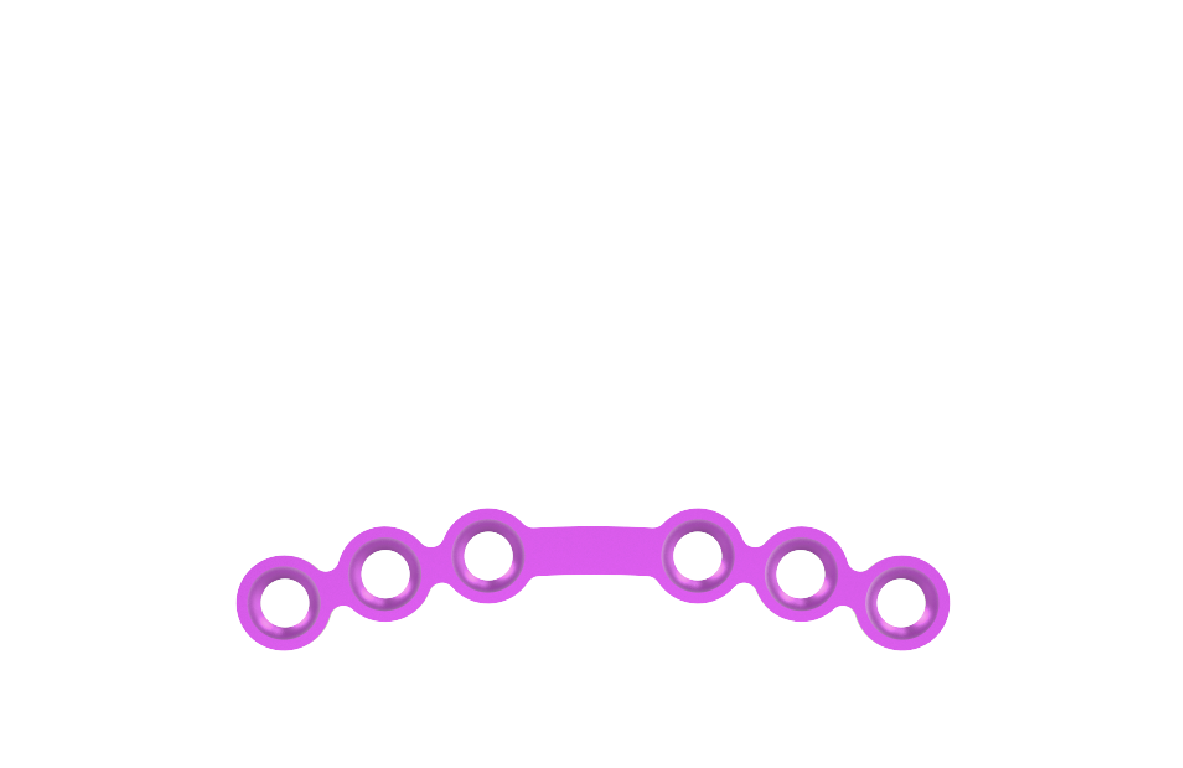

CMF 1.5 Curved with Bar Plate

Curved w/Bar Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
4 T1-55-06754
6 T1-55-05188

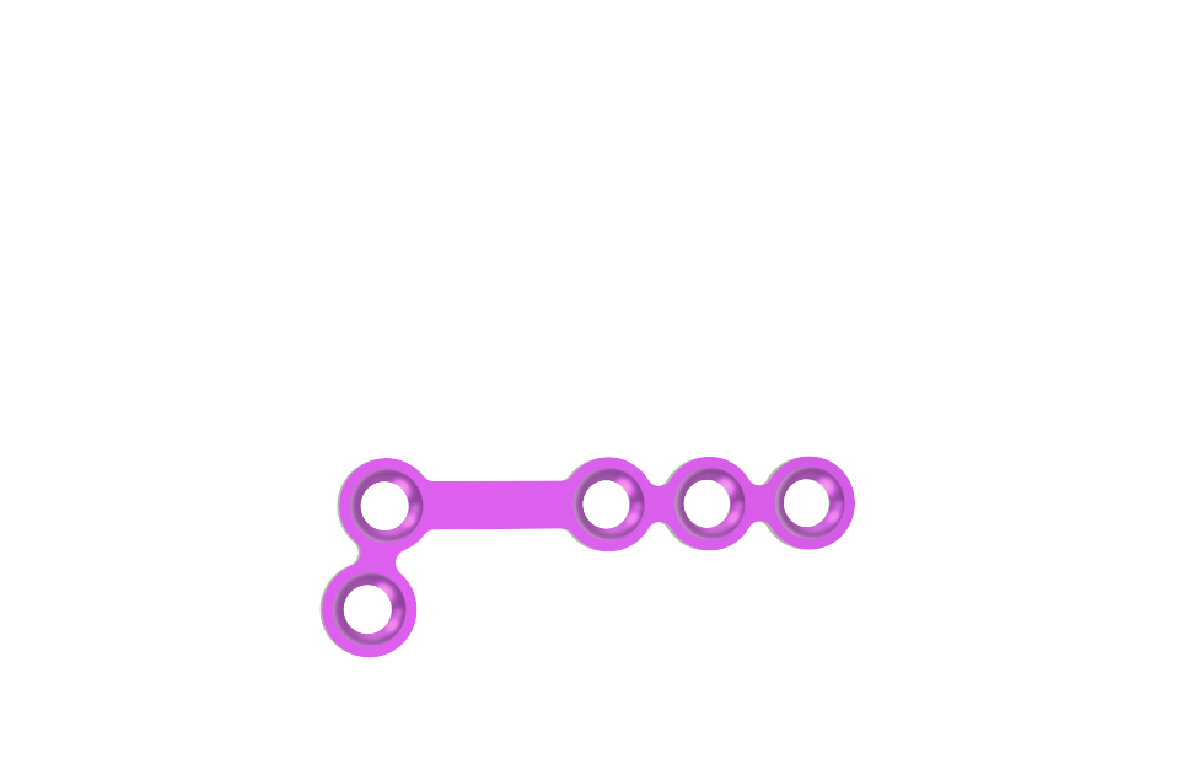

CMF 1.5 L with Bar Plate

L w/Bar Plate, 1.5mm
Profile Height: 0.6mm

Holes R/L(Bar) Titanium (P/N)
5 R(2mm) T1-55-06761
5 L(2mm) T1-55-06760
5 R(5mm) T1-55-06763
5 L(5mm) T1-55-06762
6 R(8mm) T1-55-06765
6 L(8mm) T1-55-06764
6 R(12mm) T1-55-06767
6 L(12mm) T1-55-06766

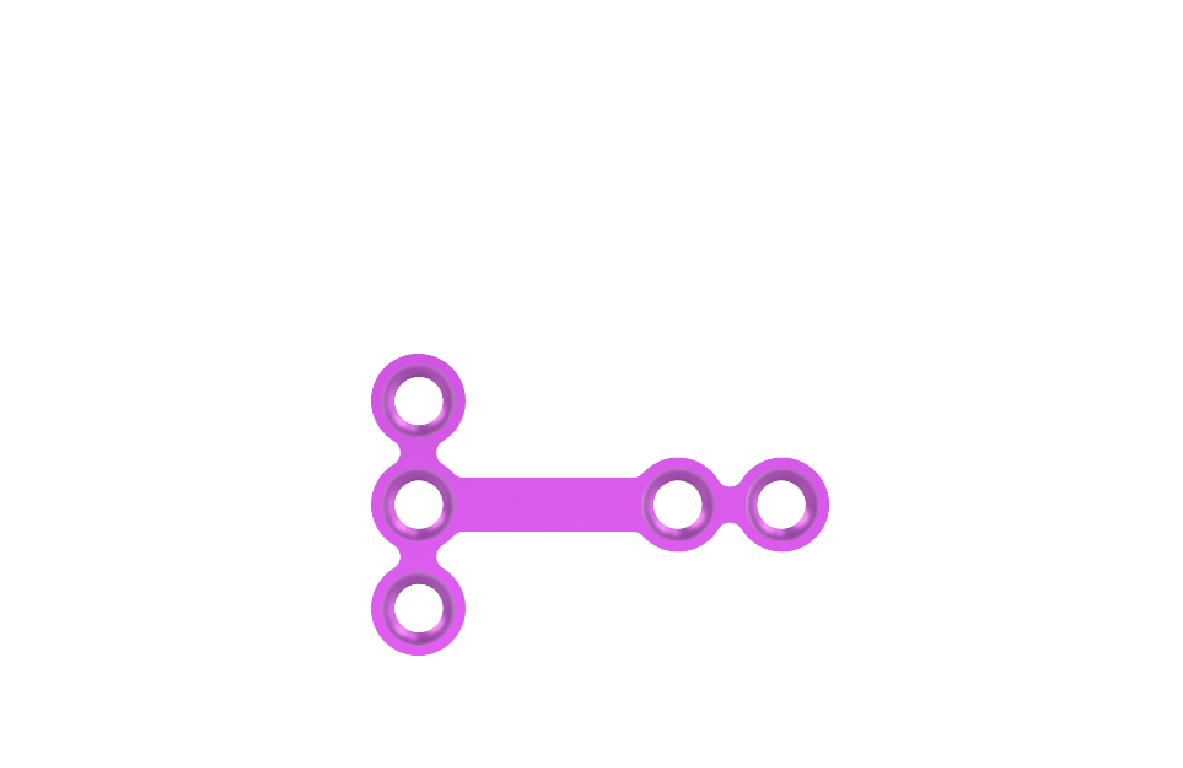

CMF 1.5 T Plate

T Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
5 T1-55-06771

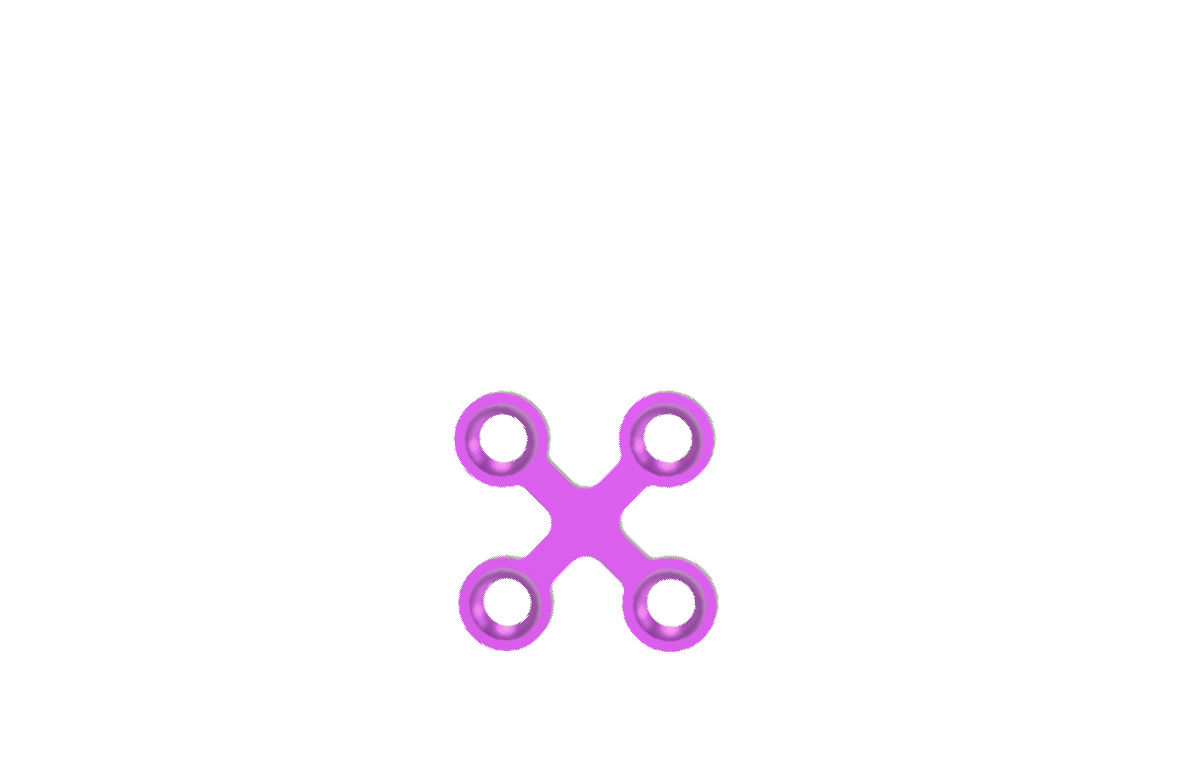

CMF 1.5 X Plate

X Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
4 T1-55-06220
CMF 1.5 Y Plate

Y w/Bar Plate, 1.5mm
Profile Height: 0.6mm

Holes Bar Titanium (P/N)
5 4mm T1-55-05151
5 8mm T1-55-05152

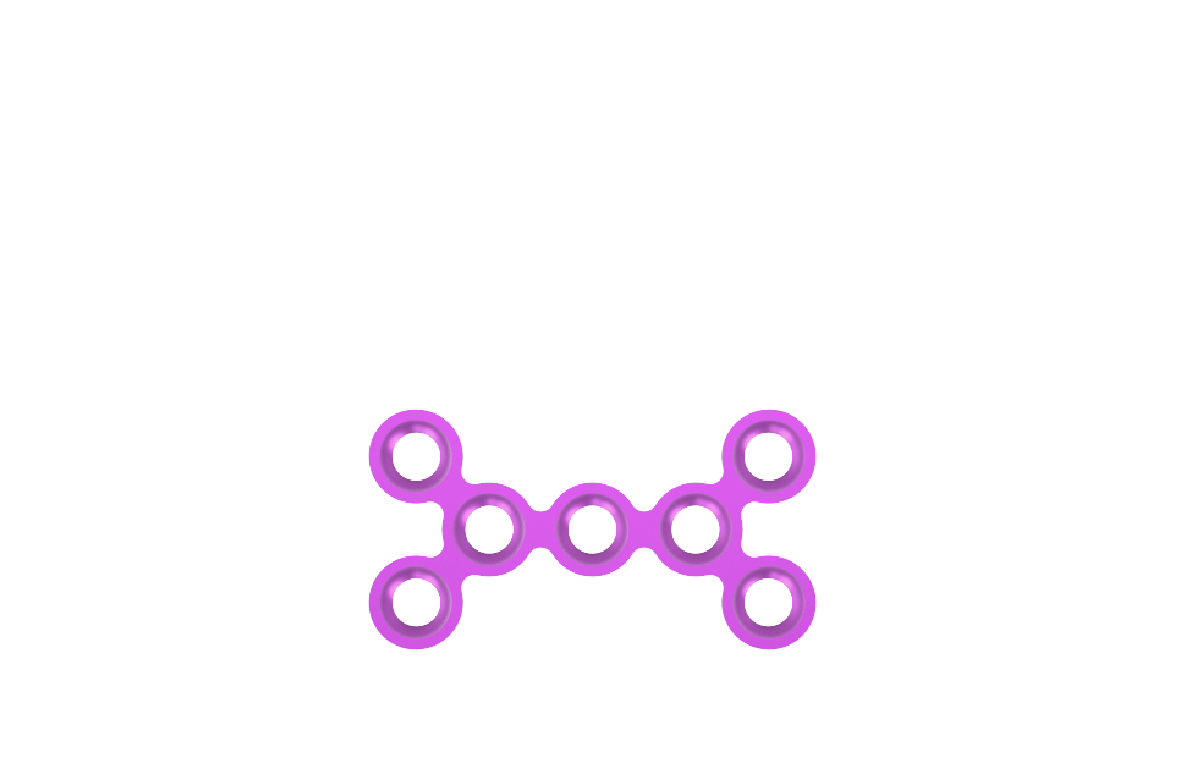

CMF 1.5 Y-Y Plate

Y-Y Plate, 1.5mm
Profile Height: 0.6mm

Holes Titanium (P/N)
7 T1-55-05164

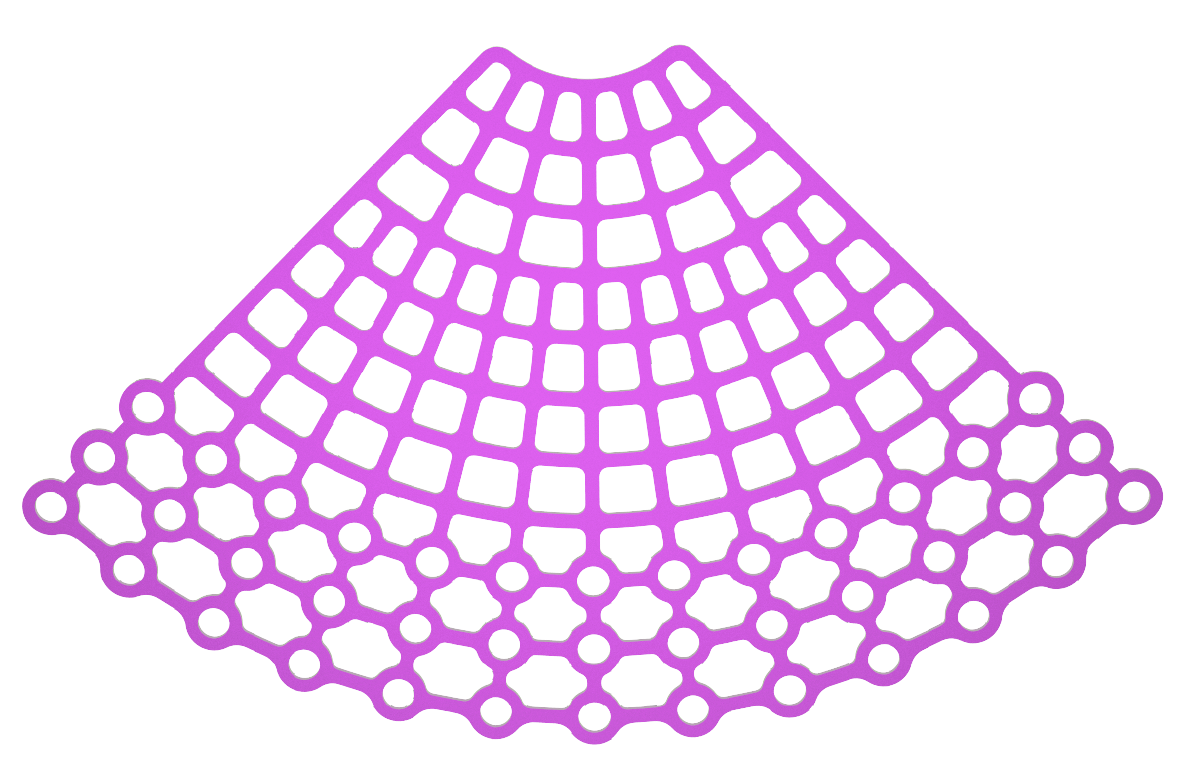

CMF 1.5 Orbital Floor Plate 36

Orbital Floor Plate, 1.5mm
Profile Height: 0.4mm

Holes Titanium (P/N)
39 T1-54-04005
72 T1-54-04006
Mini Plate 2.0mm

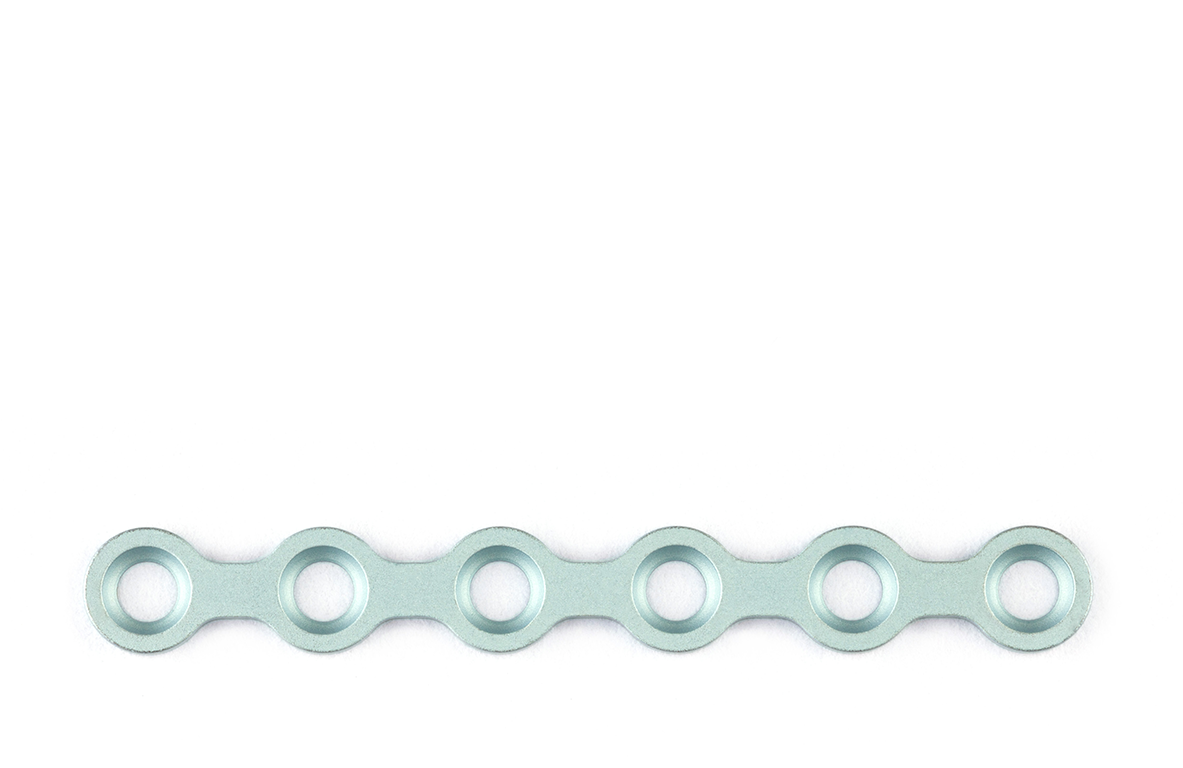

tCMF 2.0 Straight Plate

Straight Plate, 2.0mm
Profile Height: 1.0mm

Holes Titanium (P/N)
4 T1-55-08204
6 T1-55-08206
16 T1-55-08216

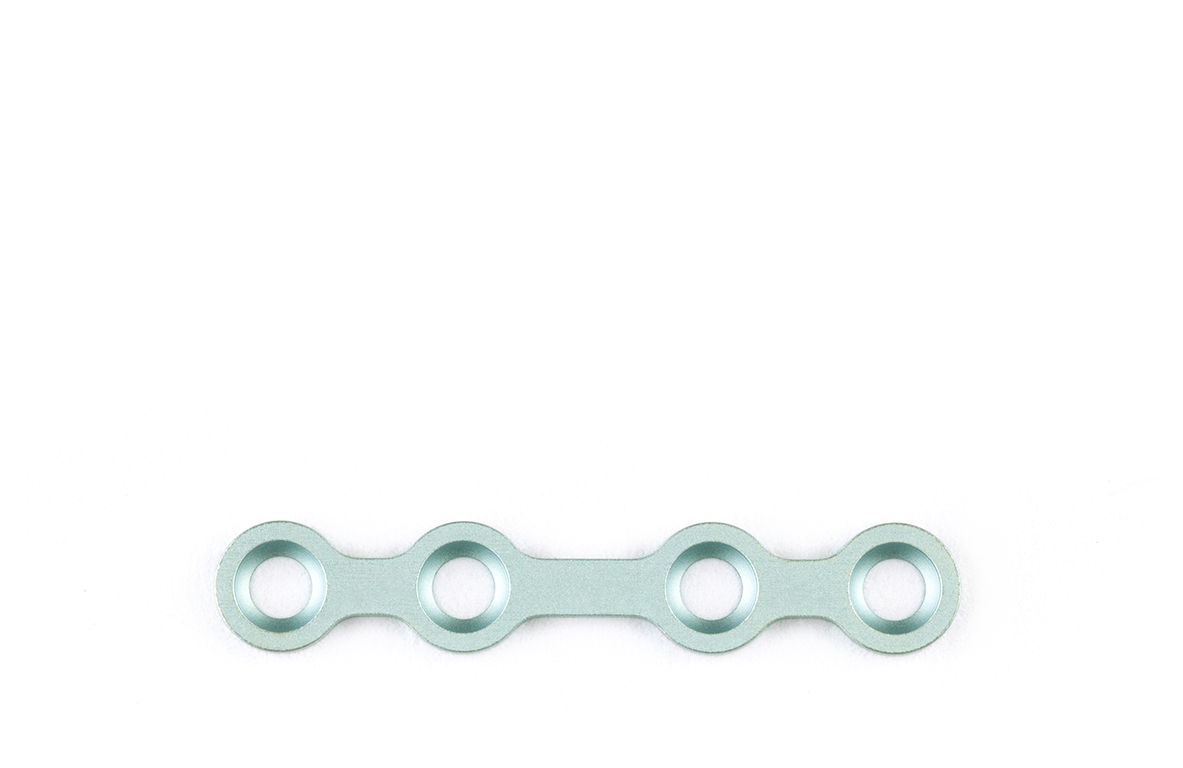

CMF 2.0 Straight with Bar Plate

Straight w/Bar Plate, 2.0mm
Profile Height: 1.0mm

Holes Bar Titanium (P/N)
4 4mm T1-55-08203
4 8mm T1-55-08205

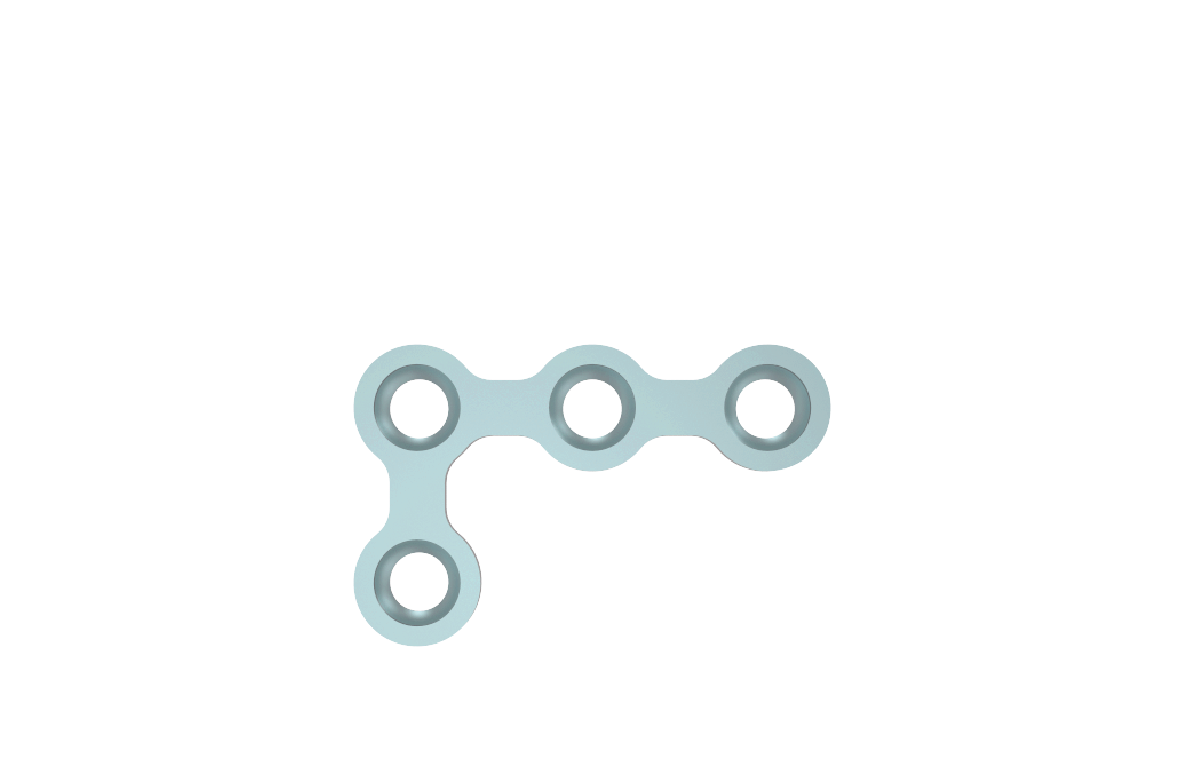

CMF 2.0 L Plate

L Plate, 2.0mm
Profile Height: 1.0mm

Holes R/L Titanium (P/N)
4 R T1-55-08230
4 L T1-55-08231

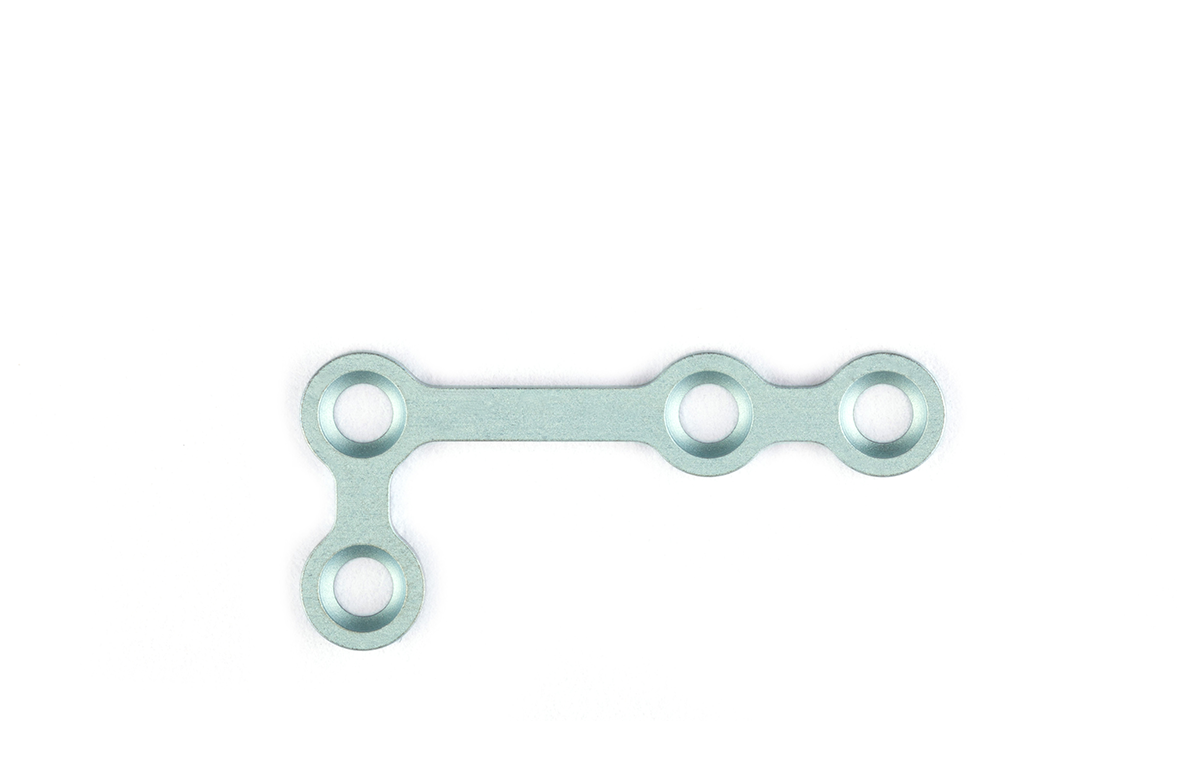

CMF 2.0 L with Bar Plate

L w/Bar Plate, 2.0mm
Profile Height: 1.0mm

Holes R/L(Bar) Titanium (P/N)
4 R(4mm) T1-55-08230
4 L(4mm) T1-55-08231
4 R(8mm) T1-55-08232
4 L(8mm) T1-55-08233
5 R(8mm) T1-55-08236
5 L(8mm) T1-55-08237

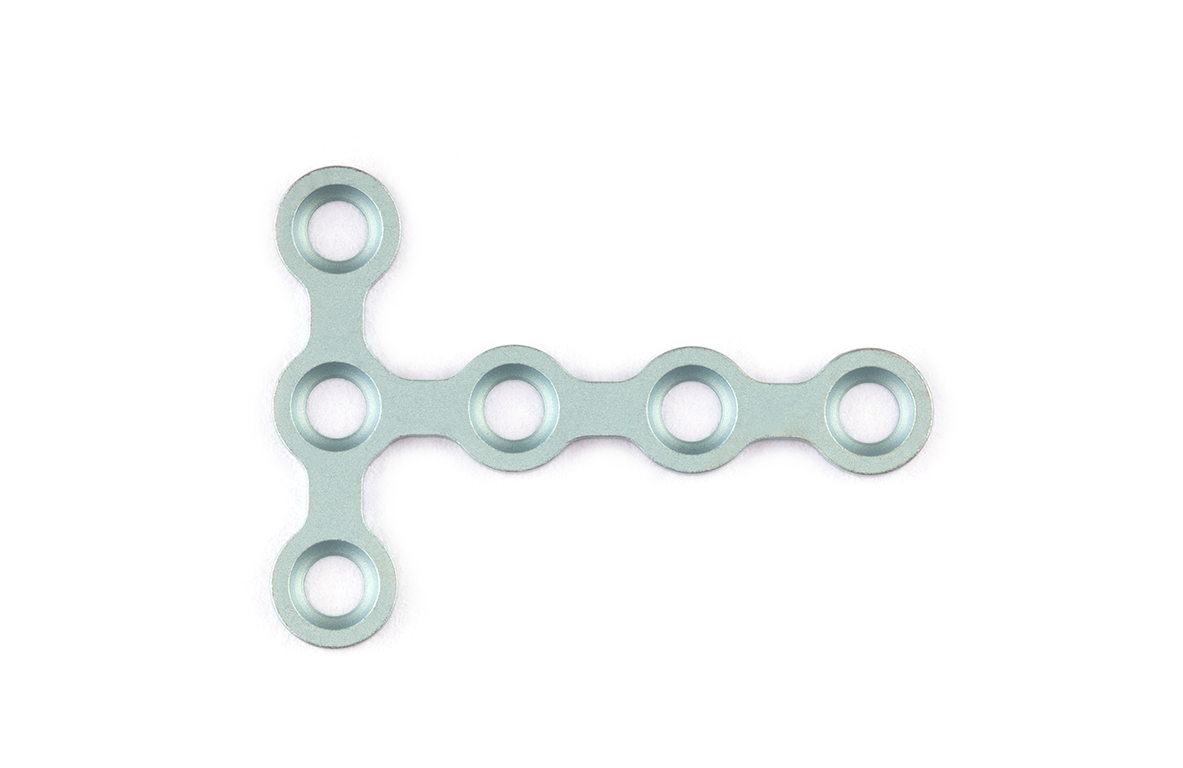

CMF 2.0 T Plate

T Plate, 2.0mm
Profile Height: 1.0mm

Holes Titanium (P/N)
6 T1-55-08240

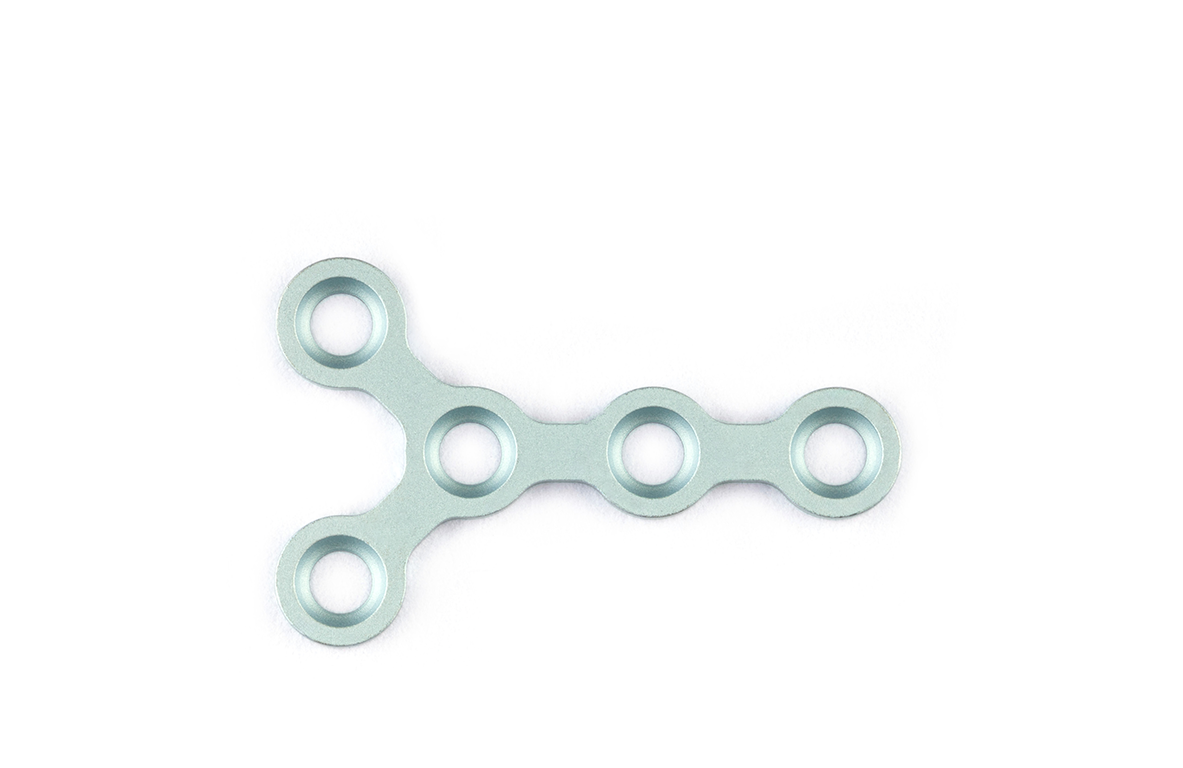

CMF 2.0 Y Plate

Y Plate, 2.0mm
Profile Height: 1.0mm

Holes Titanium (P/N)
5 T1-55-08250

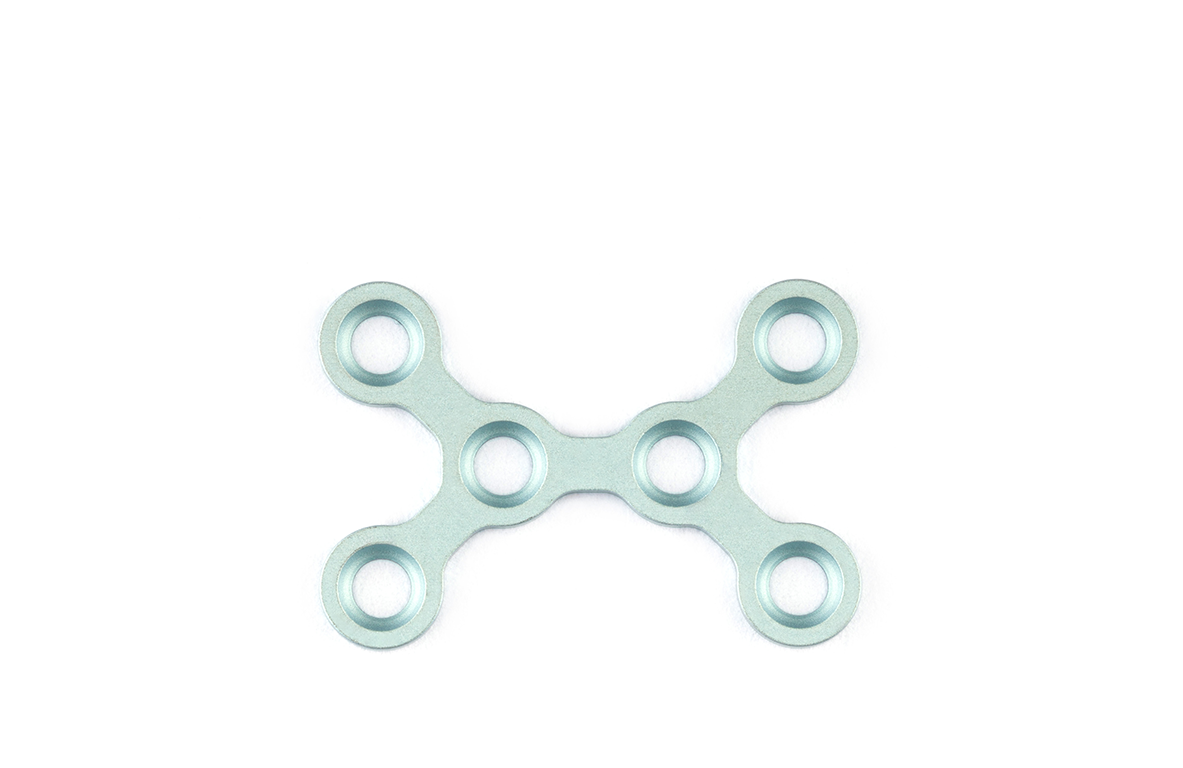

CMF 2.0 Y-Y Plate

Y-Y Plate, 2.0mm
Profile Height: 1.0mm

Holes Titanium (P/N)
6 T1-55-08260
Mandible Plate 2.0/2.3mm

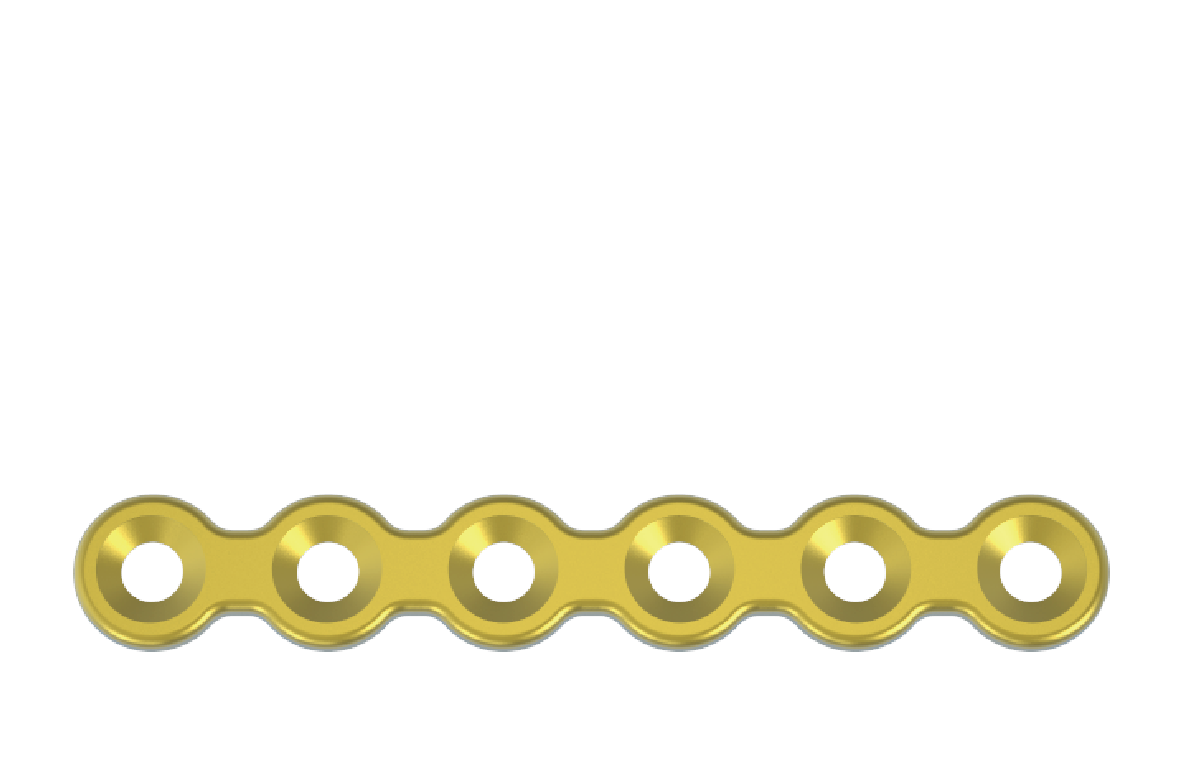

CMF 2.0/2.3 Straight Plate

Straight Plate, 2.0/2.3mm
Profile Height: 1.5mm

Holes Titanium (P/N)
4 T1-55-15504
6 T1-55-15506
14 T1-55-15514

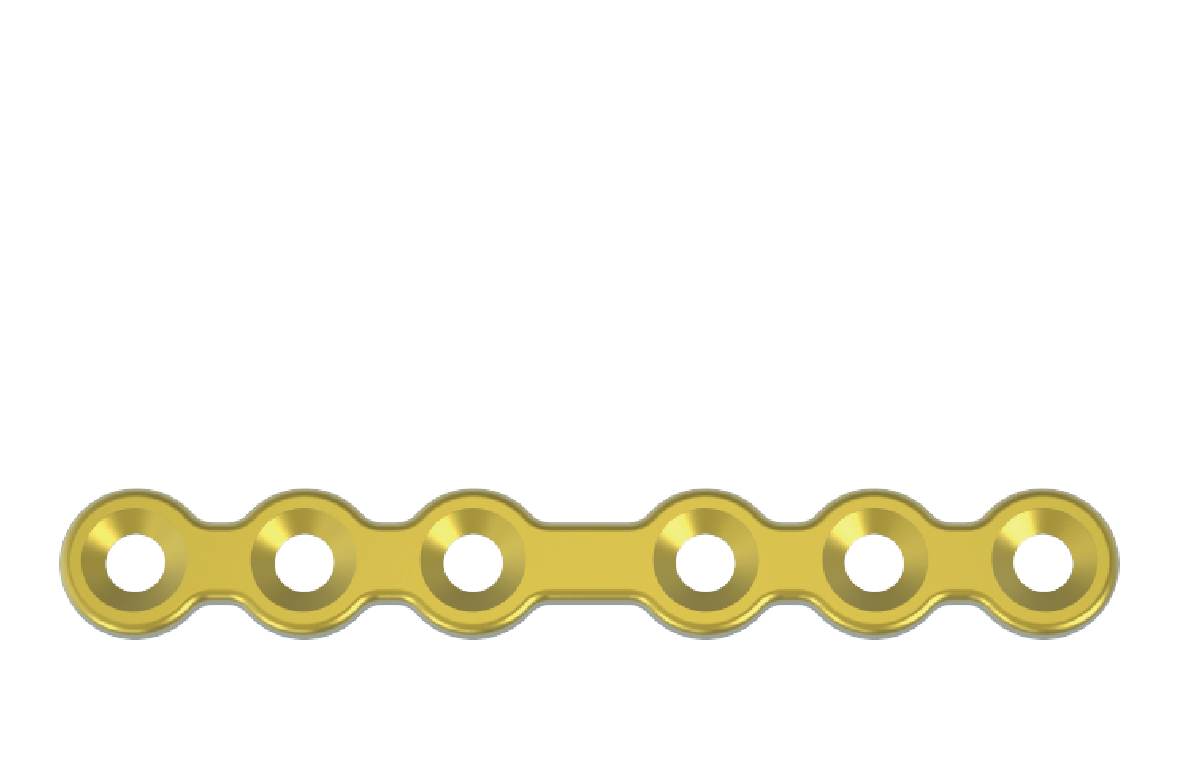

CMF 2.0/2.3 Straight with Bar Plate

Straight w/Bar Plate, 2.0/2.3mm
Profile Height: 1.5mm

Holes Bar Titanium (P/N)
4 4mm T1-55-15505
6 4mm T1-55-15507

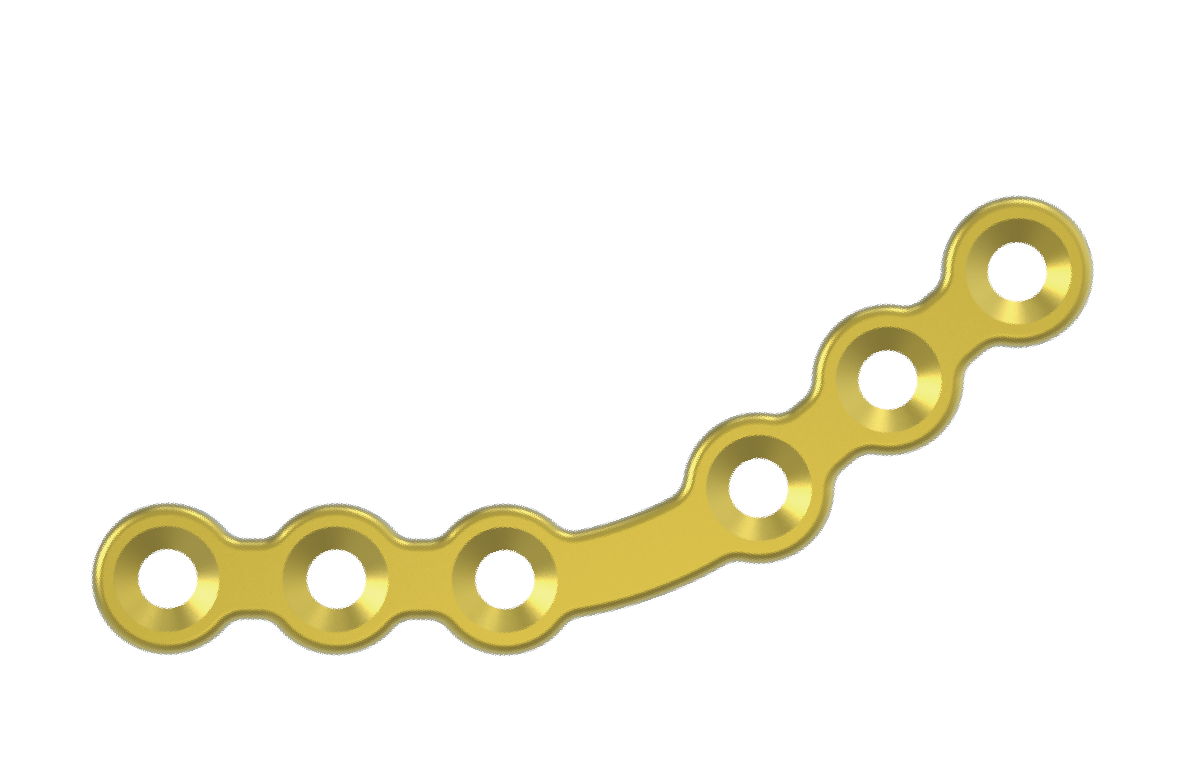

CMF 2.0/2.3 140 Plate

140º Plate, 2.0/2.3mm
Profile Height: 1.5mm

Holes Titanium (P/N)
4 T1-55-15524
6 T1-55-15536

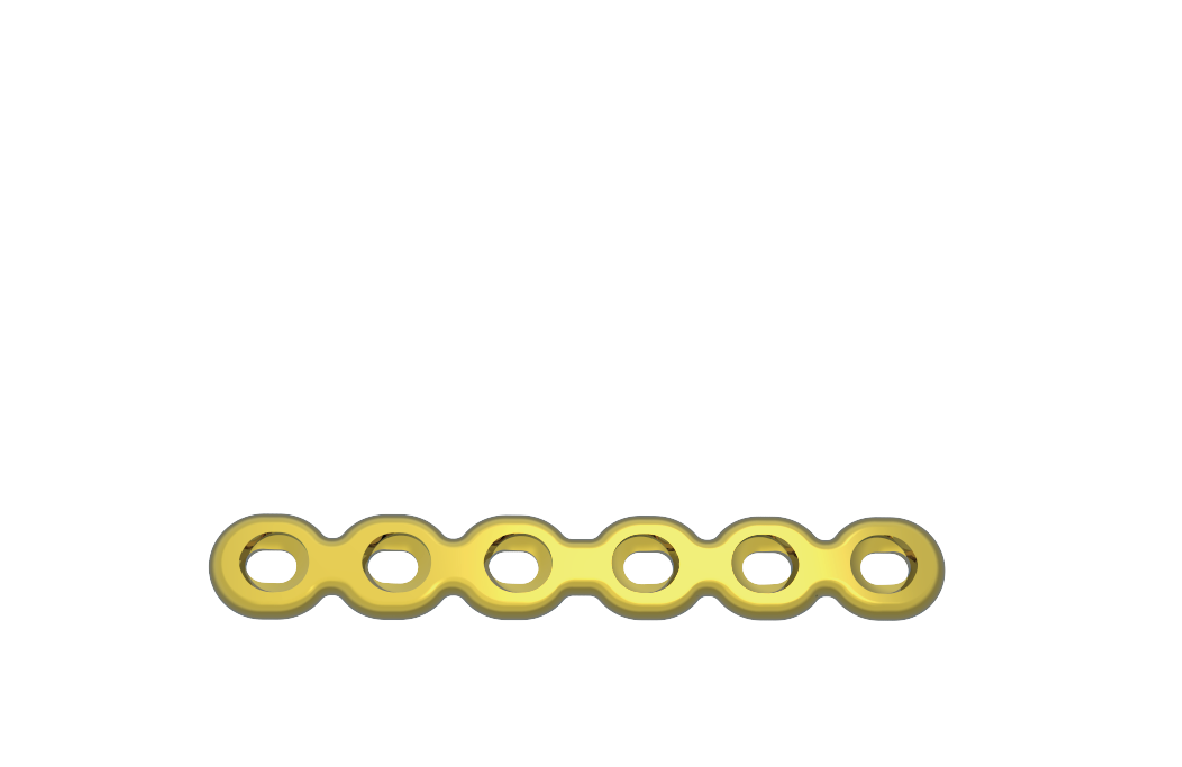

CMF 2.0/2.3 Compression Plate

Compression Plate, 2.0mm
Profile Height: 1.5mm

Holes Titanium (P/N)
4 T1-55-15570
6 T1-55-15580
CMF 2.0/2.3 Compression Plate

Compression Plate, 2.3mm
Profile Height: 1.5mm

Holes Titanium (P/N)
4 T1-55-15575
6 T1-55-15587

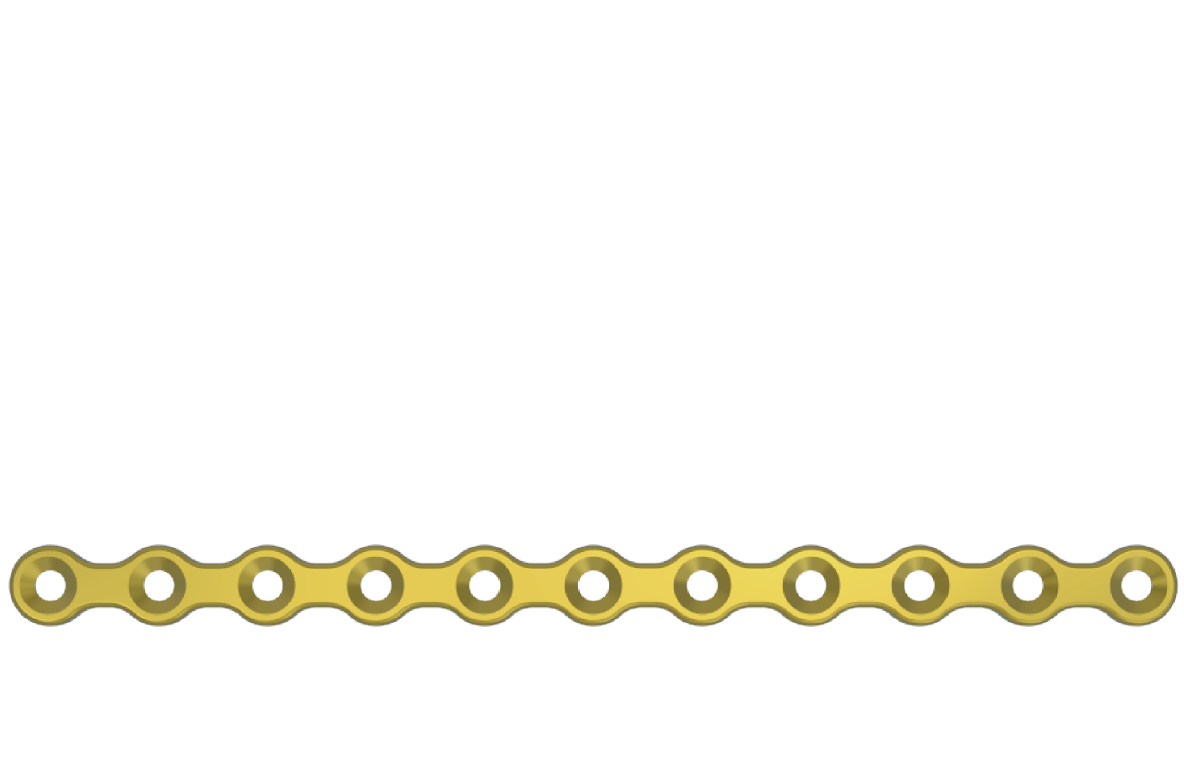

CMF 2.0/2.3 Reconstruction Plate 1.5

Reconstructive Plate, 2.0/2.3mm
Profile Height: 1.5mm

Holes Titanium (P/N)
11 T1-55-15911
17 T1-55-15917

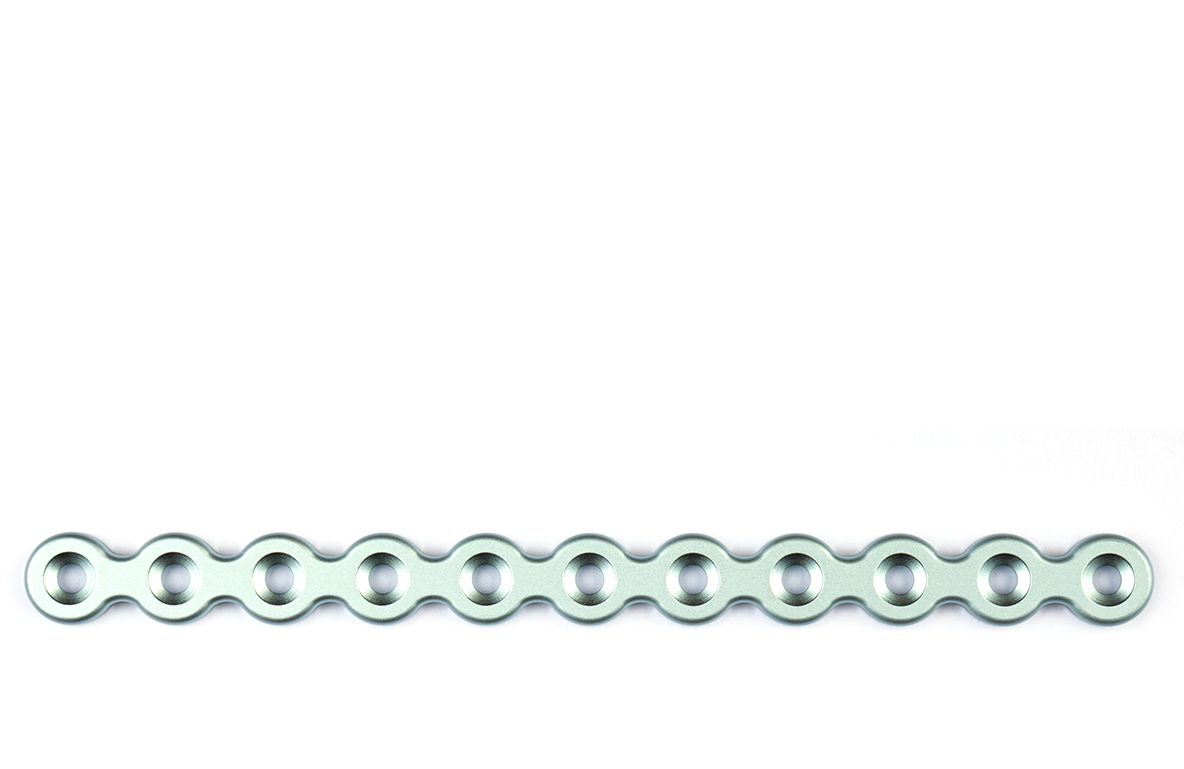

CMF 2.0/2.3 Reconstruction Plate 2.8

Reconstructive Plate(2.8mm), 2.0/2.3mm
Profile Height: 2.8mm

Holes Titanium (P/N)
11 T1-55-28911
17 T1-55-28917

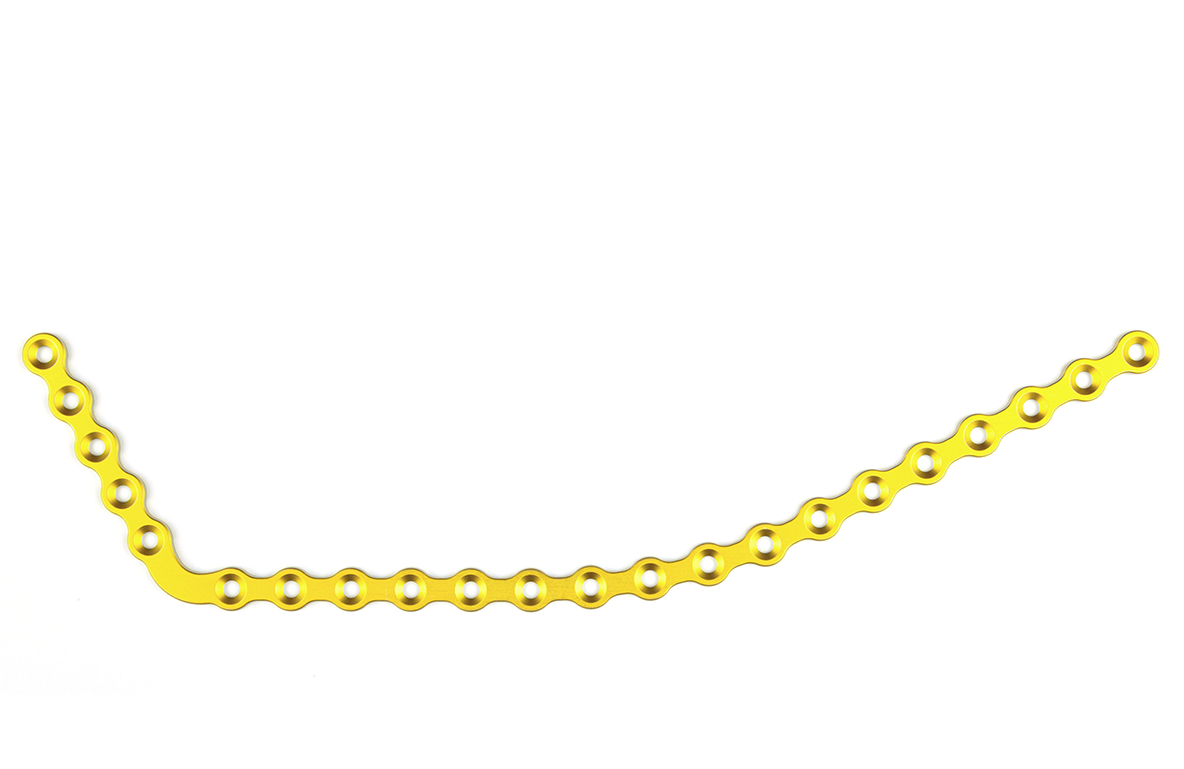

CMF 2.0/2.3 Hemi Mandibular Plate 1.5

Hemi-Mandibular Plate, 2.0/2.3mm
Profile Height: 1.5mm

Holes R/L Titanium (P/N)
5+17 R T1-55-15920
5+17 L T1-55-15922

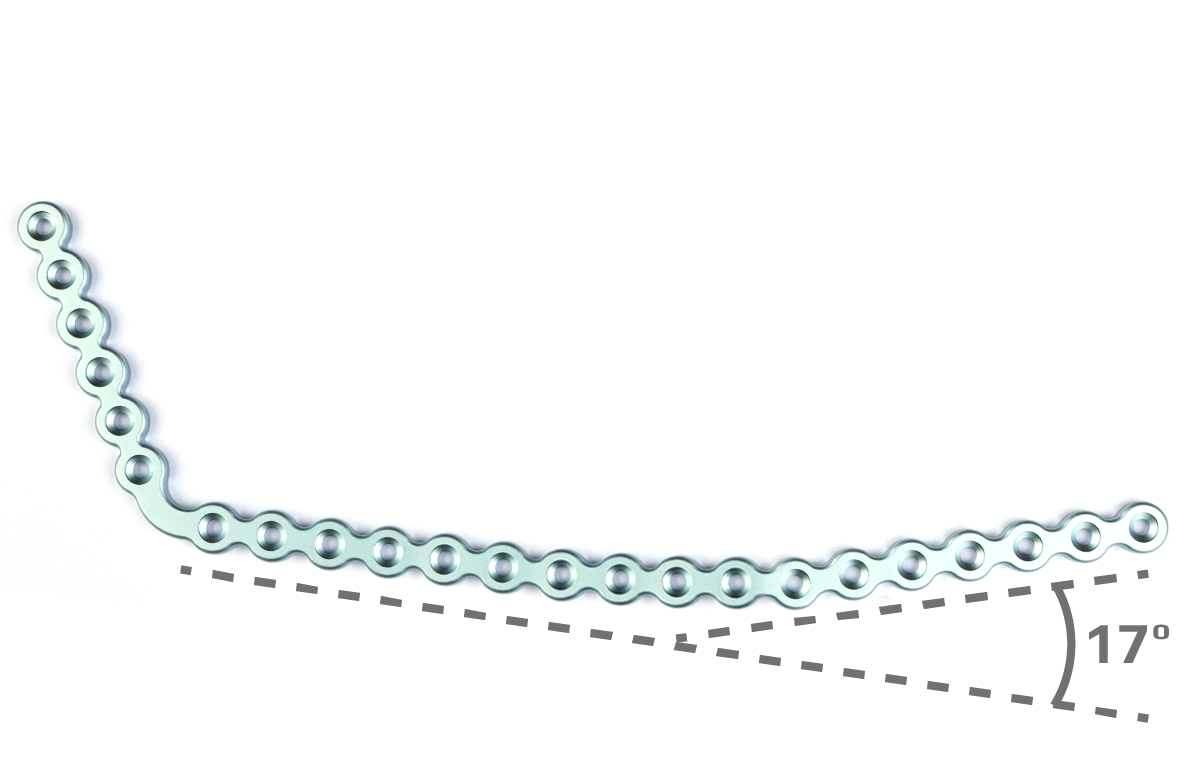

CMF 2.0/2.3 17 degree Hemi Mandibular Plate

17º Hemi-Mandibular Plate, 2.0/2.3mm
Profile Height: 2.8mm

Holes R/L Titanium (P/N)
6+17 R T1-55-28925
6+17 L T1-55-28926

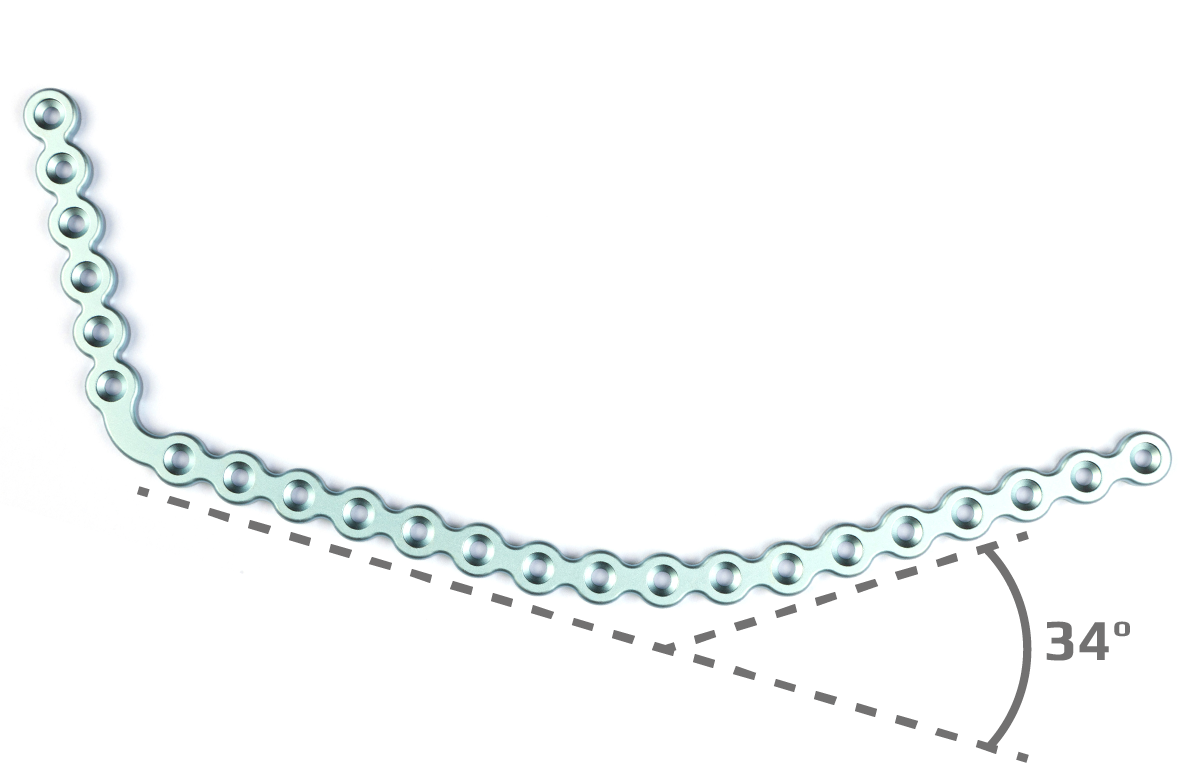

CMF 2.0/2.3 34 degree Hemi Mandibular Plate

34º Hemi-Mandibular Plate, 2.0/2.3mm
Profile Height: 2.8mm

Holes R/L Titanium (P/N)
6+17 R T1-55-28920
6+17 L T1-55-28922

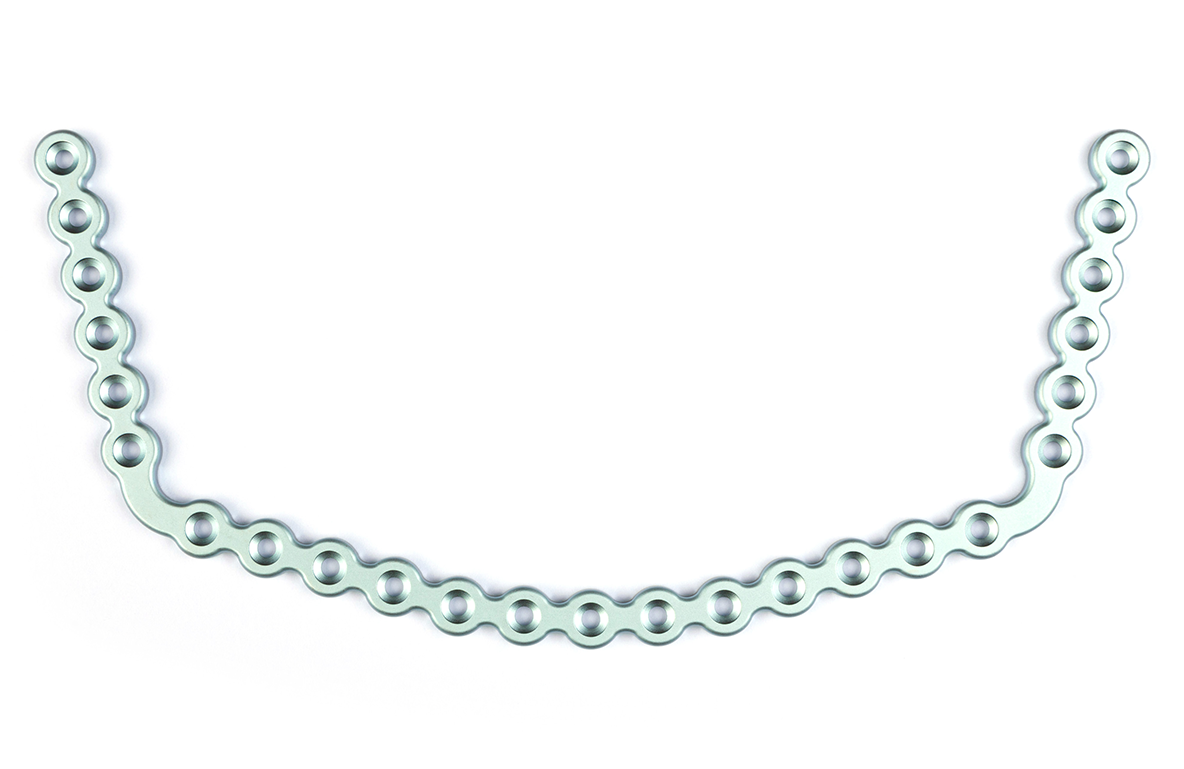

CMF 2.0/2.3 Full Mandibular Plate

Full Mandibular Plate, 2.0/2.3mm
Profile Height: 2.8mm

Holes Titanium (P/N)
6+13+6 T1-55-28934
6+15+6 T1-55-28932
6+17+6 T1-55-28930
